| Product type designation |
IE M12 Panel Feedthrough PRO |
| Product description |

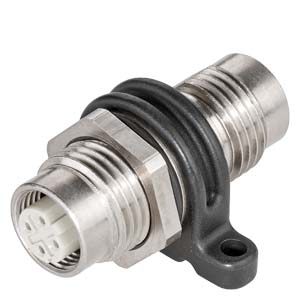

M12/M12 coupler (D-coded) |
|
IE M12 PANEL FEEDTHROUGH PRO; CONTROL CABINET BUSHING FOR TRANSITION OF M12 (D-CODED) CONNECT. METHOD (IP65) ON M12 (D-CODED) CONNECT. METHOD (IP65); 1 PACKAGE = 5 PCS |
| Suitability for use |
M12/M12 coupler and cabinet feed through (D-coded) |
| Transmission rate |
| Transfer rate / for Industrial Ethernet |
10 Mbit/s, 100 Mbit/s |
| Interfaces |
| Number of electrical connections |
|
| ● for network components or terminal equipment |
2 |
| Design of the electrical connection |
|
| ● for network components or terminal equipment |
2 x M12 socket (D-coded) |
| Design of the electrical connection / FastConnect |
No |
| Mechanical data |
| Material / of the enclosure |
metal |
| Design, dimensions and weight |
| Type of cable outlet |
180 degree cable outlet |
| Width |
35.6 mm |
| Height |
22.6 mm |
| Depth |
44.5 mm |
| Net weight |
36 g |
| Permitted ambient conditions |
| Ambient temperature |
|
| ● during operation |
-5 ... 60 °C |
| ● during storage |
-5 ... 60 °C |
| ● during transport |
-5 ... 60 °C |
| Chemical resistance / to water |
resistant |
| Protection class IP |
IP65/67 (M12) / IP65/67 (M12) |
| Product properties, functions, components / general |
| Product property |
|
| ● silicon-free |
Yes |
| Product component |
|
| ● strain relief |
Yes |
| Standards, specifications, approvals |
| Certificate of suitability |
|
| ● RoHS conformity |
Yes |
| ● UL approval |
No |
| ● Railway application in accordance with EN 50155 |
No |
| Standard for structured cabling |
Cat5 |
| Further Information / Internet Links |
| Internet-Link |
|
| ● to website: Selector SIMATIC NET SELECTION TOOL |
http://www.siemens.com/snst |
| ● to website: Industrial communication |
http://www.siemens.com/simatic-net |
| ● to website: Industry Mall |
https://www.siemens.com/industrymall |
| ● to website: Information and Download Center |
http://www.siemens.com/automation/net/catalog |
| ● to website: Image database |
http://automation.siemens.com/bilddb |
| ● to website: CAx Download Manager |
http://www.siemens.com/cax |
| ● to website: Industry Online Support |
http://support.automation.siemens.com |
| last modified: |
08.12.2014 |
Date
10.12.2014 |
Changes preserved
© Copyright Siemens AG 2014 |
