KERNAL AUTOMATION CO. LIMITED

Model

6ED1052-2HB00-0BA8

Availability:In Stock

Product Details

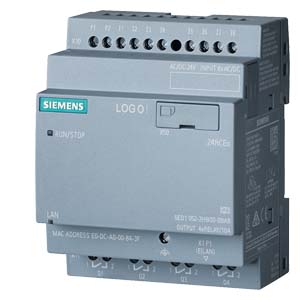

SIEMENS LOGO! Controller 6ED1052-2HB00-0BA8 LOGO! 24RCO (AC), LOGIC MODULE, PU/I/O: 24V AC/24V DC/RELAY, 8 DI/4 DO; W/O DISPLAY, MEMORY 400 BLOCKS, EXPANDABLE, ETHERNET BIULD IN WEB-SERVER, DATALOG STANDARD MICRO SD CARD FOR LOGO! SOFT COMFORT V8

Technical Specifications

Artikelnummer

6ED1052-2HB00-0BA8

		LOGO! 24RCO (AC), LOGIC MODULE, PU/I/O: 24V AC/24V DC/RELAY, 8 DI/4 DO; W/O DISPLAY, MEMORY 400 BLOCKS, EXPANDABLE, ETHERNET BIULD IN WEB-SERVER, DATALOG STANDARD MICRO SD CARD FOR LOGO! SOFT COMFORT V8 PREVIOS PROJECT USABEL
Installation type/mounting
Mounting		on 35 mm DIN rail, 4 spacing units wide
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
24 V AC		Yes
Time of day
Time switching clocks
● Number		8
● Power reserve		480 h
Digital inputs
Number of digital inputs		8
Digital outputs
Number of digital outputs		4; Relays
short-circuit protection		No; external fusing necessary
Relay outputs
Switching capacity of contacts
— with inductive load, max.		3 A
— with resistive load, max.		10 A
EMC
Emission of radio interference acc. to EN 55 011
● Limit class B, for use in residential areas		Yes
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CSA approval		Yes
UL approval		Yes
FM approval		Yes
Developed in accordance with IEC 61131		Yes
according to VDE 0631		Yes
Marine approval
● Marine approval		Yes
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		55 °C
Dimensions
Width		71.5 mm
Height		90 mm
Depth		58 mm
last modified:		14.10.2014
