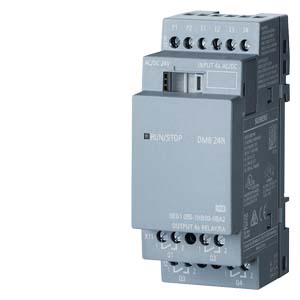

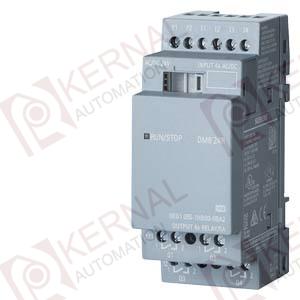

LOGO! DM8 24R EXPANSION MODULE, PU/I/O: 24V/24V/RELAY, 2TE 4 DI/4 DO, AC/DC/NPN INPUT FOR LOGO! 8 |
| Installation type/mounting |
| Mounting |
on 35 mm DIN rail, 2 spacing units wide |
| Supply voltage |
| 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| 24 V AC |
Yes |
| Line frequency |
| ● permissible frequency range, upper limit |
63 Hz |
| Digital inputs |
| Number of digital inputs |
4 |
| Input voltage |
| ● Type of input voltage |
AC/DC |
| Input current |
| ● for signal "0", max. (permissible quiescent current) |
1.1 mA |
| ● for signal "1", typ. |
5.5 mA |
| Input delay (for rated value of input voltage) |
| for standard inputs |
| — at "0" to "1", max. |
1.5 ms |
| — at "1" to "0", max. |
15 ms |
| Digital outputs |
| Number of digital outputs |
4; Relays |
| short-circuit protection |
No |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
| ● Lamp load, max. |
1 000 W |
| Output current |
| ● for signal "1" rated value |
5 A |
| Parallel switching of 2 outputs |
| ● for increased power |
No |
| Switching frequency |
| ● with resistive load, max. |
2 Hz |
| ● with inductive load, max. |
0.5 Hz |
| ● mechanical, max. |
10 Hz |
| Relay outputs |
| Switching capacity of contacts |
| — with inductive load, max. |
3 A |
| — with resistive load, max. |
5 A |
| EMC |
| Emission of radio interference acc. to EN 55 011 |
| ● Limit class B, for use in residential areas |
Yes |
| Degree and class of protection |
| Degree of protection to EN 60529 |
|
| ● IP20 |
Yes |
| Standards, approvals, certificates |
| CSA approval |
Yes |
| UL approval |
Yes |
| FM approval |
Yes |
| Developed in accordance with IEC 61131 |
Yes |
| according to VDE 0631 |
Yes |
| Marine approval |
| ● Marine approval |
Yes |
| Ambient conditions |
| Operating temperature |
| ● Min. |
0 °C |
| ● max. |
55 °C |
| Dimensions |
| Width |
35.5 mm |
| Height |
90 mm |
| Depth |
58 mm |
| last modified: |
14.10.2014 |
