Model

6ED1055-1CB00-0BA2

Availability:In Stock

Product Details

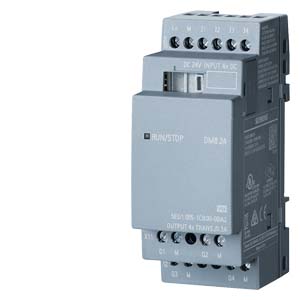

SIEMENS LOGO! Controller 6ED1055-1CB00-0BA2 LOGO! DM8 24 EXPANSION MODULE, PU/I/O: 24V/24V/TRANS., 4 DI/4 DO FOR LOGO! 8LOGO! DM8 24 ERWEITERUNGSMODUL, SV/E/A: 24V/24V/TRANS., 4 DE/ 4 DA FUER LOGO! 8LOGO! DM8 24 MOD. D'EXTENSION, ALIM/E/S: 24V/24V

Technical Specifications

Artikelnummer

6ED1055-1CB00-0BA2

		LOGO! DM8 24 EXPANSION MODULE, PU/I/O: 24V/24V/TRANS., 4 DI/4 DO FOR LOGO! 8
Installation type/mounting
Mounting		on 35 mm DIN rail, 2 spacing units wide
Supply voltage
24 V DC		Yes
permissible range, lower limit (DC)		20.4 V
permissible range, upper limit (DC)		28.8 V
Digital inputs
Number of digital inputs		4
Input voltage
● Type of input voltage		DC
● for signal "0"		< 5 V DC
● for signal "1"		> 12 V DC
Input current
● for signal "0", max. (permissible quiescent current)		0.88 mA
● for signal "1", typ.		4 mA
Input delay (for rated value of input voltage)
for standard inputs
— at "0" to "1", max.		1.5 ms
— at "1" to "0", max.		1.5 ms
Digital outputs
Number of digital outputs		4
short-circuit protection		Yes
Output current
● for signal "1" rated value		0.3 A
Parallel switching of 2 outputs
● for increased power		No
Switching frequency
● with resistive load, max.		10 Hz
● with inductive load, max.		0.5 Hz
Relay outputs
Switching capacity of contacts
— Thermal continuous current, max.		0.3 A
EMC
Emission of radio interference acc. to EN 55 011
● Limit class B, for use in residential areas		Yes
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CSA approval		Yes
UL approval		Yes
FM approval		Yes
Developed in accordance with IEC 61131		Yes
according to VDE 0631		Yes
Marine approval
● Marine approval		Yes
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		55 °C
Dimensions
Width		35.5 mm
Height		90 mm
Depth		58 mm
last modified:		14.10.2014
