| Product type designation |
IE FC M12 Plug PRO (PROFINET) |
| Product description |

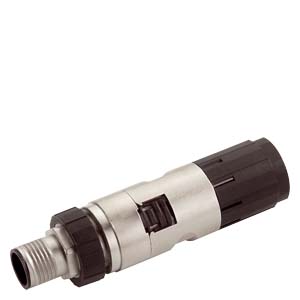

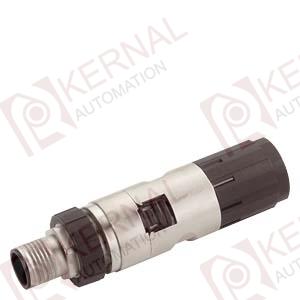

M12 connector with high protection, 4-pole, D-coded |
|
IE FC M12 PLUG PRO 2X2 M12 PLUG CONNECTOR W. RUGGED METAL HOUSING AND FC CONNECTING METHOD, WITH AXIAL CABLE OUTLET (D CODED)1 PACKAGE = 8 PIECES FOR SCALANCE X208 PRO AND ET200 PRO PN |
| Suitability for use |
For connecting electrical cables to SCALANCE X208PRO, ET200 PRO PN or ET200 eco PN for fast assembly with the FastConnect system |
| Transmission rate |
| Transfer rate |
|
| ● 1 / for Industrial Ethernet |
10 Mbit/s |
| ● 2 / for Industrial Ethernet |
100 Mbit/s |
| Interfaces |
| Number of electrical connections |
|
| ● for Industrial Ethernet FC TP cables |
4 |
| ● for network components or terminal equipment |
1 |
| Design of the electrical connection |
|
| ● for Industrial Ethernet FC TP cables |
integrated cut-and-clamp contacts for 4-wire TP FC installation cable |
| ● for network components or terminal equipment |
M12 connector (D-coded) |
| Design of the electrical connection / FastConnect |
Yes |
| Mechanical data |
| Material / of the enclosure |
metal |
| Design, dimensions and weight |
| Type of cable outlet |
180 degree cable outlet |
| Width |
19 mm |
| Height |
19 mm |
| Depth |
73 mm |
| Net weight |
40 g |
| Permitted ambient conditions |
| Ambient temperature |
|
| ● during operation |
-40 ... 85 °C |
| ● during storage |
-40 ... 85 °C |
| ● during transport |
-40 ... 85 °C |
| Relative humidity / at 25 °C / without condensation / during operation / maximum |
95 % |
| Chemical resistance / to water |
resistant |
| Protection class IP |
IP65/67 |
| Product properties, functions, components / general |
| Product property |
|
| ● silicon-free |
Yes |
| Product component |
|
| ● strain relief |
Yes |
| Standards, specifications, approvals |
| Certificate of suitability |
|
| ● RoHS conformity |
Yes |
| ● UL approval |
Yes |
| ● cULus approval |
Yes |
| Standard for structured cabling |
Cat5 |
| Further Information / Internet Links |
| Internet-Link |
|
| ● to website: Selector SIMATIC NET SELECTION TOOL |
http://www.siemens.com/snst |
| ● to website: Industrial communication |
http://www.siemens.com/simatic-net |
| ● to website: Industry Mall |
https://www.siemens.com/industrymall |
| ● to website: Information and Download Center |
http://www.siemens.com/automation/net/catalog |
| ● to website: Image database |
http://automation.siemens.com/bilddb |
| ● to website: CAx Download Manager |
http://www.siemens.com/cax |
| ● to website: Industry Online Support |
http://support.automation.siemens.com |
| last modified: |
27.10.2014 |
Date
03.11.2014 |
Changes preserved
© Copyright Siemens AG 2014 |
