| Artikelnummer |
6ES7623-1AE01-5AA0 | |
 |

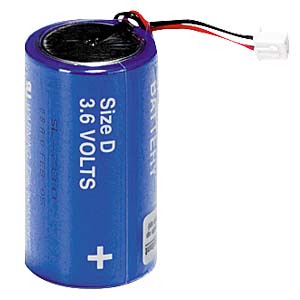

LITHIUM BATTERY 3.6 V FOR TD17, OP17, OP25, OP27, OP35, OP37, TP27, TP37, OP/TP270, MP 270, MP 270B, MP 370, C7-621, C7-623, C7-624, C7-626 AND PG 7XX, CABLE APPROX. 250 MM BATTERY AND ADAPTER CABLE |
| Installation type/mounting |
| Wall mounting/direct mounting possible |
Yes; in HMI devices, battery compartment |
| Supply voltage |
| Type of supply voltage |
DC |
| Rated value (DC) |
3.6 V; 1.6 Ah |
| Battery |
| Design |
| ● Special design |
Yes; 2/3 AA |
| Technology |
| ● Lithium-ion |
Yes; SL-361 |
| Standards, approvals, certificates |
| CE mark |
Yes |
| Ambient conditions |
| Operating temperature |
| ● Operating temperature range, min. |
0 °C |
| ● Operating temperature range, max. |
55 °C |
| Storage/transport temperature |
| ● min. |
-55 °C |
| ● max. |
85 °C |
| Relative humidity |
| ● Operation, max. |
90 % |
| Dimensions |
| Height |
33 mm; Length |
| Thickness |
14.7 mm; Diameter |
| Weights |
| Weight without packaging |
14 g |
| Scope of supply |
| Delivery unit in items |
1; Incl. 45 mm 210 mm connecting cable |
| Other |
| Note: |
for TD17, OP17, OP25, OP27, OP35, OP37, TP27, TP37, OP/TP270, MP 270, MP 270B, MP 370, C7-621, C7-623, C7-624, C7-626 and PG 7xx |
| Usable in the following products |
| ● Product 1 |
6AV3017-1NE30* |
| ● Product 2 |
6AV3617-4EB42-0AA0 |
| ● Product 3 |
6AV3617-1JC00* |
| ● Product 4 |
6AV3617-1JC20* |
| ● Product 5 |
6AV3617-1JC30* |
| ● Product 6 |
6AV3525-1EA41* |
| ● Product 7 |
6AV3525-1EA01-0AX0 |
| ● Product 8 |
6AV3627-1JK00-0AX0 |
| ● Product 9 |
6AV3627-1LK00-1AX0 |
| ● Product 10 |
6AV3627-7JK00-0AX0 |
| ● Product 11 |
6AV3535-1TA41-0BX1 |
| ● Product 12 |
6AV3535-1FA01* |
| ● Product 13 |
6AV3535-1FA41-0BX1 |
| ● Product 14 |
6AV3637-1ML00''* |
| ● Product 15 |
6AV3637-1LL00* |
| ● Product 16 |
6AV3627-1NK00* |
| ● Product 17 |
6AV3627-1QK00* |
| ● Product 18 |
6AV3627-1QL00-0AX0 |
| ● Product 19 |
6AV3637-1PL00-0AX0 |
| ● Product 20 |
6AV6542-0C* |
| last modified: |
21.08.2014 | | |
|
