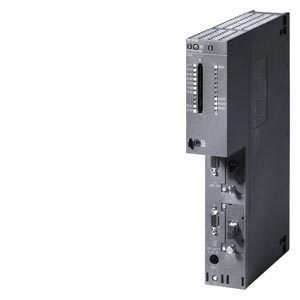

| General information |
| Hardware product version |
1 |
| Firmware version |
V4.5 |
| Engineering with |
| ● Programming package |
STEP7 V 5.3 SP2 or higher with HW update |
| Supply voltage |
| 24 V DC |
Power supply via system power supply |
| Input current |
| from CPU, max. |
Not relevant for 400 series (300 series set) |
| from backplane bus 24 V DC, max. |
Per DP interface |
| from interface 5 V DC, max. |
At each DP interface |
| Memory |
| Type of memory |
other |
| Backup |
| ● with battery |
all data |
| Battery |
| Backup battery |
| ● Backup current, typ. |
Valid up to 40°C |
| ● Backup time, max. |
Dealt with in the module data manual with the secondary conditions and the factors of influence |
| ● Feeding of external backup voltage to CPU |
5 to 15 VDC |
| CPU-blocks |
| DB |
| ● Number, max. |
Number range: 1 - 8191 |
| FB |
| ● Number, max. |
Number range: 0 - 6143 |
| FC |
| ● Number, max. |
Number range: 0 - 6143 |
| Counters, timers and their retentivity |
| S7 counter |
| Retentivity |
| — preset |
Z 0 to Z 7 |
| IEC counter |
| ● Type |
SFB |
| S7 times |
| Retentivity |
| — preset |
No times retentive |
| IEC timer |
| ● Type |
SFB |
| Data areas and their retentivity |
| retentive data area, total |
Total working and load memory (with backup battery) |
| Flag |
| ● Retentivity preset |
MB 0 to MB 15 |
| ● Number of clock memories |
in 1 memory byte |
| Data blocks |
| ● Number, max. |
Number range: 1 - 8191 |
| Hardware configuration |
| connectable OPs |
63 without message processing, 16 with message processing |
| Interface modules |
| ● Number of connectable IM 463s, max. |
Single mode only |
| Number of operable FMs and CPs (recommended) |
| ● FM |
See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections |
| ● CP, point-to-point |
See manual Automation System S7-400H fault-tolerant systems. Limited by number of slots and number of connections |
| ● PROFIBUS and Ethernet CPs |
Of which max. 10 CP as DP master |
| Time of day |
| Clock |
| ● Deviation per day (buffered), max. |
Power off |
| ● Deviation per day (unbuffered) max. |
Power on |
| Operating hours counter |
| ● Number/Number range |
0 to 7 |
| ● Range of values |
0 to 32767 hours |
| ● Granularity |
1 hour |
| 1st interface |
| Interface type |
Integrated |
| Physics |
RS 485 / PROFIBUS MPI |
| Number of connection resources |
MPI: 44, DP: 32 |
| 2nd interface |
| Interface type |
Integrated |
| Physics |
RS 485 / PROFIBUS MPI |
| Number of connection resources |
32 |
| 3rd interface |
| Interface type |
Pluggable synchronization submodule (FO) |
| Plug-in interface modules |
Synchronization submodule IF 960 6ES7 960-1AA04-0XA0 or 6ES7 960-1AB04-0XA0 |
| 4th interface |
| Interface type |
Pluggable synchronization submodule (FO) |
| Plug-in interface modules |
Synchronization submodule IF 960 6ES7 960-1AA04-0XA0 or 6ES7 960-1AB04-0XA0 |
| Communication functions |
| S7 communication |
| ● User data per job (of which consistent), max. |
1 variable |
| S5-compatible communication |
| ● supported |
(via CP max. 10 and FC AG_SEND and FC AG_RECV) |
| ● Number of simultaneous AG-SEND/AG-RECV orders per CPU, max. |
64/64 |
| Standard communication (FMS) |
| ● supported |
Via CP and loadable FB |
| Test commissioning functions |
| Status/control |
| ● Variables |
Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Forcing |
| ● Force, variables |
Inputs/outputs, bit memories, distributed I/Os |
| Configuration |
| programming |
| ● Command set |
see instruction list |
| ● System functions (SFC) |
see instruction list |
| ● System function blocks (SFB) |
see instruction list |
| last modified: |
08.09.2014 |
