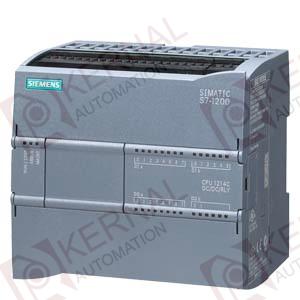

| Display |
| with display |
No |
| Supply voltage |
| 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| Load voltage L |
| ● Rated value (DC) |
24 V |
| ● permissible range, lower limit (DC) |
5 V |
| ● permissible range, upper limit (DC) |
250 V |
| Input current |
| Current consumption (rated value) |
500 mA |
| Current consumption, max. |
1.2 A |
| Inrush current, max. |
12 A |
| Output current |
| Current output to backplane bus (DC 5 V), max. |
1 600 mA |
| Power losses |
| Power loss, typ. |
12 W |
| Memory |
| Usable memory for user data |
50 kbyte |
| Work memory |
| ● Integrated |
50 kbyte |
| ● expandable |
No |
| Load memory |
| ● Integrated |
2 Mbyte |
| ● Plug-in (SIMATIC Memory Card), max. |
24 Mbyte |
| Backup |
| ● present |
Yes |
| ● without battery |
Yes |
| CPU processing times |
| for bit operations, typ. |
0.1 µs |
| for word operations, typ. |
12 µs |
| for floating point arithmetic, typ. |
18 µs |
| Data areas and their retentivity |
| retentive data area in total (incl. times, counters, flags), max. |
2 048 byte |
| Flag |
| ● Number, max. |
8 kbyte |
| Address area |
| I/O address area |
| ● Inputs |
1 024 byte |
| ● Outputs |
1 024 byte |
| Process image |
| ● Inputs, adjustable |
1 kbyte |
| ● Outputs, adjustable |
1 kbyte |
| Time of day |
| Clock |
| ● Hardware clock (real-time clock) |
Yes |
| ● Backup time |
240 h |
| Digital inputs |
| Number of digital inputs |
14 |
| ● of which, inputs usable for technological functions |
6 |
| integrated channels (DI) |
14 |
| m/p-reading |
Yes |
| Input voltage |
| ● Rated value, DC |
24 V |
| Input current |
| ● for signal "1", typ. |
1 mA |
| Input delay (for rated value of input voltage) |
| for standard inputs |
| — at "0" to "1", min. |
0.2 ms |
| — at "0" to "1", max. |
12.8 ms |
| for interrupt inputs |
| — Parameterizable |
Yes |
| Cable length |
| ● Cable length, shielded, max. |
500 m |
| ● Cable length unshielded, max. |
300 m |
| Digital outputs |
| Number of digital outputs |
10 |
| integrated channels (DO) |
10 |
| short-circuit protection |
No |
| Switching capacity of the outputs |
| ● with resistive load, max. |
2 A |
| Output delay with resistive load |
| ● "0" to "1", max. |
10 ms |
| ● "1" to "0", max. |
10 ms |
| Switching frequency |
| ● of the pulse outputs, with resistive load, max. |
1 Hz |
| Relay outputs |
| ● Max. number of relay outputs, integrated |
10 |
| ● Number of relay outputs |
10 |
| Cable length |
| ● Cable length, shielded, max. |
500 m |
| ● Cable length unshielded, max. |
150 m |
| Analog inputs |
| Number of analog inputs |
2 |
| Integrated channels (AI) |
2 |
| Input ranges |
| ● Voltage |
Yes |
| Input ranges (rated values), voltages |
| ● 0 to 10 V |
Yes |
| Cable length |
| ● Cable length, shielded, max. |
100 m |
| Analog outputs |
| Cable length |
| ● Cable length, shielded, max. |
100 m |
| Analog value creation |
| Integration and conversion time/resolution per channel |
| ● Resolution with overrange (bit including sign), max. |
10 bit |
| ● Integration time, parameterizable |
Yes |
| ● Conversion time (per channel) |
625 µs |
| Encoder |
| Connectable encoders |
| ● 2-wire sensor |
Yes |
| 1st interface |
| Isolated |
Yes |
| Automatic detection of transmission speed |
Yes |
| Autonegotiation |
Yes |
| Autocrossing |
Yes |
| Functionality |
| ● PROFINET IO Controller |
Yes |
| Communication functions |
| S7 communication |
| ● supported |
Yes |
| ● as server |
Yes |
| Open IE communication |
| ● TCP/IP |
Yes |
| ● ISO-on-TCP (RFC1006) |
Yes |
| Web server |
| ● supported |
Yes |
| ● User-defined websites |
Yes |
| Number of connections |
| ● overall |
15 |
| Test commissioning functions |
| Status/control |
| ● Status/control variable |
Yes |
| Forcing |
| ● Forcing |
Yes |
| Integrated Functions |
| Number of counters |
6 |
| Counter frequency (counter) max. |
100 kHz |
| Frequency meter |
Yes |
| controlled positioning |
Yes |
| PID controller |
Yes |
| Number of alarm inputs |
4 |
| Galvanic isolation |
| Galvanic isolation digital inputs |
| ● Galvanic isolation digital inputs |
No |
| ● between the channels, in groups of |
1 |
| Galvanic isolation digital outputs |
| ● between the channels |
No |
| ● between the channels, in groups of |
1 |
| EMC |
| Interference immunity against discharge of static electricity |
| ● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2 |
Yes |
| — Test voltage at air discharge |
8 kV |
| — Test voltage at contact discharge |
6 kV |
| Interference immunity to cable-borne interference |
| ● Interference immunity on supply lines acc. to IEC 61000-4-4 |
Yes |
| ● Interference immunity on signal lines acc. to IEC 61000-4-4 |
Yes |
| Surge immunity |
| ● on the supply lines acc. to IEC 61000-4-5 |
Yes |
| Immunity against conducted interference induced by high-frequency fields |
| ● Interference immunity against high-frequency radiation acc. to IEC 61000-4-6 |
Yes |
| Emission of radio interference acc. to EN 55 011 |
| ● Limit class A, for use in industrial areas |
Yes |
| ● Limit class B, for use in residential areas |
Yes |
| Degree and class of protection |
| Degree of protection to EN 60529 |
|
| ● IP20 |
Yes |
| Standards, approvals, certificates |
| CE mark |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| FM approval |
Yes |
| Ambient conditions |
| Operating temperature |
| ● Min. |
0 °C |
| ● max. |
55 °C |
| ● horizontal installation, min. |
0 °C |
| ● horizontal installation, max. |
55 °C |
| ● vertical installation, min. |
0 °C |
| ● vertical installation, max. |
45 °C |
| Storage/transport temperature |
| ● Min. |
-40 °C |
| ● max. |
70 °C |
| Air pressure |
| ● Operation, min. |
795 hPa |
| ● Operation, max. |
1 080 hPa |
| ● Storage/transport, min. |
660 hPa |
| ● Storage/transport, max. |
1 080 hPa |
| Relative humidity |
| ● Operation, max. |
95 % |
| Vibrations |
| ● Operation, checked according to IEC 60068-2-6 |
Yes |
| Shock test |
| ● checked according to IEC 60068-2-27 |
Yes |
| Climatic and mechanical conditions for storage and transport |
| Climatic conditions for storage and transport |
| Free fall |
| — Drop height, max. (in packaging) |
0.3 m |
| Configuration |
| programming |
| Programming language |
| — LAD |
Yes |
| — FBD |
Yes |
| — SCL |
Yes |
| Cycle time monitoring |
| ● can be set |
Yes |
| Dimensions |
| Width |
110 mm |
| Height |
100 mm |
| Depth |
75 mm |
| Weights |
| Weight, approx. |
435 g |
| last modified: |
16.09.2014 |
