KERNAL AUTOMATION CO. LIMITED

Model

6ES7148-1EH00-0XA0

Availability:In Stock

Product Details

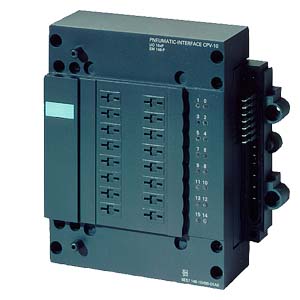

SIEMENS Others 6ES71481EH000XA0 SIMATIC DP, PNEUMATIC INTERFACE,EM 148-P FOR ET 200X,16 DO PNEUMATIC,FOR COUPLING WITH,FESTO VALVE BLOCK CPV-10SIMATIC DP, PNEUMATIC-INTERFACE,EM 148-P FUER ET 200X,16 DO PNEUMATIC,ZUR KOPPLUNG MIT,FESTO-VENTILINSEL CPV-10S

Technical Specifications

SIMATIC DP, PNEUMATIC INTERFACE EM 148-P FOR ET 200X 16 DO PNEUMATIC FOR COUPLING WITH FESTO VALVE BLOCK CPV-10

Input current

from load voltage 2L (including valve), max.

320 mA

per valve, max.

20 mA

from backplane bus 5 V DC, max.

35 mA

Power losses

Power loss, typ.

6 W

Interrupts/diagnostics/status information

Diagnostics indication LED

Status indicator digital output (green)

Yes

Pneumatics

Pressure range

3 to 8 bar

Rated flow rate

400 l/min

Medium

Compressed air filtered (40 µm), oiled (oil: VG 32), not oiled/vacuum

Connection method, pneumatic connection

Number of outputs for valve control

Galvanic isolation

Galvanic isolation valve outputs

between the channels

between the channels, in groups of

Dimensions

Width

147 mm

Height

152 mm

Depth

55 mm

Weights

Weight, approx.

450 g

Status

May 9, 2014
