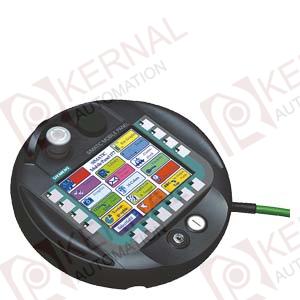

SIMATIC MOBILE PANEL 177 PN W. INTEGRATED ENABLING BUTTON, STOP BUTTON, HANDWHEEL, KEY SWITCH AND ILLUMINATED PUSHBUTTON UNIT, CONFIGURABLE W. WINCC FLEXIBLE COMPACT VERSION 2005 AND HIGHER OR TIA PORTAL V11 AND HIGHER |
| Display |
| Design of display |
STN |
| Screen diagonal |
5.7 in |
| Size |
5.7" (121 mm x 92 mm) |
| Display type |
STN, 256 colors |
| Number of colors |
256 |
| Number of grayscales |
256 |
| Color type |
Colors |
| Resolution (pixels) |
| ● horizontal image resolution |
320 |
| ● vertical image resolution |
240 |
| ● Resolution (WxH in pixel) |
320 x 240 |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
about 50,000 hours |
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| ● Backlight dimmable |
No |
| Control elements |
| Operating options |
Keys and Touch |
| Function keys, programmable |
14 function keys, 8 with LEDs |
| Keyboard fonts |
| ● Number of function keys |
14 |
| ● Keys with LED |
Yes; 8 with LED |
| ● user-definable label membrane keys |
Yes |
| ● Number of function keys with LEDs |
8 |
| — Multi-key operation |
Yes |
| — Number of multi-key operations |
2 |
| ● System keys |
Yes |
| ● Number of configurable system keys |
14 |
| ● Numeric/alphabetical input |
Yes / Yes |
| — hexadecimal keyboard |
Yes |
| — Multi-key operation |
No |
| Touch operation |
| ● Touch screen |
analog, resistive |
| ● Design as touch screen |
Yes |
| special operator controls |
| ● Stop button |
Yes |
| ● Acknowledgement button |
Yes |
| ● Key-operated switch |
Yes |
| ● Illuminated pushbutton |
Yes |
| ● Handwheel |
Yes |
| Supply voltage |
| Supply voltage |
via connection box |
| Processor |
| Processor |
RISC 32-bit, 200 MHz |
| Processor type |
RISC 32-bit |
| Drives |
| Diskette drive |
No |
| CD-ROM |
No |
| Hard disk |
No |
| Memory |
| Type |
Flash / RAM |
| Usable memory for user data |
2048 KB of usable memory for user data / no user memory for options |
| Type of output |
| Info LED |
No |
| Power LED |
No |
| Error LED |
No |
| Interfaces |
| Interfaces |
1 x RS485, 1 x Ethernet (RJ45) |
| Number of RS 485 interfaces |
1 |
| ● Transmission rate, max. |
0 Mbit/s |
| Number of USB interfaces |
0 |
| USB port |
No |
| PC card slot |
No |
| CF card slot |
No |
| Multimedia card/SD card slot |
combined |
| Number of parallel interfaces |
0 |
| Special interfaces |
1 x special interfaces |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
1 x Ethernet (RJ45) |
| ● Industrial Ethernet status LED |
0 |
| Protocols |
| PROFINET |
Yes |
| PROFINET IO |
Yes |
| PROFIsafe |
No |
| PROFIBUS |
No |
| Protocols (Ethernet) |
| ● TCP/IP |
Yes |
| Further protocols |
| ● AS-i |
No |
| ● CAN |
No |
| ● INTERBUS |
No |
| ● MODBUS |
Yes |
| ● Data-Highway |
No |
| ● DeviceNet |
No |
| ● Local Operating Network |
No |
| ● SUCOnet |
No |
| ● other bus systems |
Yes |
| Degree and class of protection |
| IP (at the front) |
IP65 |
| IP65 enclosure |
Yes |
| Standards, approvals, certificates |
| Certifications |
CE, cULus, C-TICK, SIBE |
| CE mark |
Yes |
| cULus |
Yes |
| RCM (former C-TICK) |
Yes |
| Highest safety class achievable in safety mode |
| ● Performance level according to EN ISO 13849-1:2008 |
d |
| Use in hazardous areas |
| ● cULus Class I Zone 2, Division 2 |
No |
| ● FM Class I Division 2 |
No |
| Ambient conditions |
| Drop height |
1.5 m |
| Operating temperature |
| ● Operation |
0 °C to 40 °C |
| Storage/transport temperature |
| ● Transport, storage |
-20 °C to 60 °C |
| Relative humidity |
| ● Operation, max. |
80 % |
| Operating systems |
| Operating system |
Windows CE |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
Yes |
| Process value display (output) |
Yes |
| Process value default (input) possible |
Yes |
| Recipe administration |
Yes |
| Configuration software |
| ● WinCC flexible Compact |
Yes |
| ● WinCC flexible Standard |
Yes |
| ● WinCC flexible Advanced |
Yes |
| ● WinCC Basic (TIA Portal) |
No |
| ● WinCC Comfort (TIA Portal) |
Yes |
| ● WinCC Advanced (TIA Portal) |
Yes |
| ● WinCC Professional (TIA Portal) |
Yes |
| ● Configuration tool |
WinCC flexible Compact Version 2005 or higher (to be ordered separately) |
| ● 2. Configuration kit |
WinCC flexible Compact |
| — Version |
Version 2005 |
| — Configuration tool |
WinCC flexible |
| — Type |
Compact |
| Languages |
| Online languages |
| ● Number of online/runtime languages |
5 |
| Project languages |
| ● Languages per project |
32 |
| Functionality under WinCC (TIA Portal) |
| Libraries |
Yes |
| Applications/options |
Sm@rtService, Sm@rtAccess |
| ● Pocket Word |
No |
| ● Pocket Excel |
No |
| ● PDF Viewer |
No |
| ● Media Player |
No |
| ● SIMATIC WinCC Sm@rtServer |
Yes |
| ● SIMATIC WinCC Audit |
No |
| ● Connection point identification |
Yes |
| Number of Visual Basic Scripts |
No |
| ● Debugging in the simulator |
No |
| Task planner |
Yes |
| Help system |
Yes |
| ● Number of characters per info text |
70 |
| Message system |
| ● Number of alarm classes |
32 |
| ● Number of messages |
2 000 |
| ● Bit messages |
Yes |
| ● Analog messages |
Yes |
| ● Number of bit messages |
2 000 |
| ● Number of analog messages |
50 |
| ● Telegram message procedure Alarm S |
No |
| ● System messages HMI |
Yes |
| ● System messages PLC |
No |
| ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) |
No |
| ● Message length (in characters) |
80 |
| ● Lines |
1 |
| ● Number of process values per message |
8 |
| ● Message indicator |
Yes |
| ● acoustic feedback |
No |
| ● First/last value |
Yes |
| Recipe administration |
| ● Number of recipes |
100 |
| ● Data records per recipe |
200 |
| ● Entries per data record |
200 |
| ● Recipe memory |
32 KB integrated Flash, expandable |
| Variables |
| ● Number of variables per device |
1 024 |
| ● Number of variables per screen |
50 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structures |
Yes |
| Images |
| ● Number of configurable images |
500 |
| ● Permanent window/default |
Yes |
| ● Start screen configurable |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
| Image objects |
| ● Text objects |
2,500 text elements |
| ● I/O fields per image |
50 |
| ● Index of screen context |
No |
| ● Return |
Yes |
| ● Graphics object |
Bit maps, vector graphics |
| Complex image objects |
| ● Status/control |
With SIMATIC S7 |
| ● dynamic objects |
Diagrams, bar graphs, sliders, invisible buttons |
| ● Methods |
Trend / profile |
| ● Limit value lines |
Yes |
| ● Number of bars per chart |
5 |
| ● Limit value lines |
Yes |
| ● Number of visible switches per project |
1 000 |
| Attributes for dynamic objects |
| ● Color change |
Yes |
| ● X/Y movement |
Yes |
| ● Hide |
Yes |
| ● Angle of rotation |
No |
| Lists |
| ● Number of text lists per project |
300 |
| ● Number of entries per text list |
30 |
| ● Number of graphics lists per project |
100 |
| Archiving |
| ● Number of archives per device |
0 |
| ● Message archive |
No |
| ● Process value archive |
No |
| ● Archiving methods |
|
| — Sequential archive |
No |
| — Short-term archive |
No |
| ● Memory location |
|
| — PC card |
No |
| — CF card |
No |
| — USB memory |
No |
| — Ethernet |
No |
| ● Data storage format |
|
| — CSV |
No |
| — TXT |
No |
| ● Online evaluation |
|
| — using trend curves |
No |
| Security |
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Password export/import |
Yes |
| Data carrier support |
| ● PC card |
No |
| ● CF card |
No |
| ● Diskette drive |
No |
| ● Hard disk |
No |
| Logging through printer |
| ● Recording/Printing |
- |
| Transfer (upload/download) |
| ● Transfer of configuration |
Serial, Ethernet, automatic transfer recognition |
| Process coupling |
| ● Connection to controller |
S7-200, S7- 300/400, Win AC, PC (TCP/IP), SIMOTION, Modicon (Modbus), see the chapter "System interfaces" |
| ● S7-1200 |
Yes; with restrictions |
| ● S7-1500 |
Yes; with restrictions |
| ● S7-200 |
Yes |
| — PPI (point-to-point) |
No |
| — PPI network |
No |
| — MPI |
No |
| — PROFIBUS DP |
No |
| — Ethernet |
Yes |
| ● S7-300/400 |
Yes |
| — MPI |
No |
| — PROFIBUS DP |
No |
| — PROFINET |
Yes |
| ● LOGO! |
No |
| ● SINUMERIK |
Yes |
| ● SIMOTION |
Yes |
| ● S5 |
No |
| — serial |
No |
| — PROFIBUS DP |
No |
| ● TI 505 |
No |
| ● Allen Bradley (EtherNet/IP) |
Yes |
| ● Allen Bradley (DF1) |
No |
| ● Allen Bradley (DF485) |
No |
| ● Mitsubishi (MC TCP/IP) |
Yes |
| ● Mitsubishi (FX) |
No |
| ● Mitsubishi (MP4) |
No |
| ● Telemecanique (ADJUST) |
No |
| ● Telemecanique (Uni-Telway) |
No |
| ● OMRON (FINS TCP) |
No |
| ● OMRON (LINK/Multilink) |
No |
| ● Modicon (Modbus TCP/IP) |
Yes |
| ● Modicon (Modbus) |
No |
| ● GE-Fanuc (SNP) |
No |
| Functions |
| ● Key repeat |
No |
| ● TAB sequence |
Yes |
| ● Calculating functions |
Yes |
| ● Animate |
Yes |
| ● Menu tree editor |
No |
| ● Unit switchover |
No |
| Service tools/configuration aids |
| ● Clean screen |
No |
| ● Touch calibration |
Yes |
| ● Backup/Restore manually |
Yes |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
| ● Delta transfer |
Yes |
| ● Monitoring function for battery and memory |
Yes |
| ● Trace (operation archive) |
No |
| Expandability/openness |
| ● Open Platform Program |
Yes |
| I/O/Options |
| I/O devices |
Printer |
| ● Printer |
Yes |
| ● Multimedia Card |
Yes |
| ● SD card |
No |
| ● USB memory |
No |
| Mechanics/material |
| Type of housing (front) |
plastic |
| ● Plastic |
Yes |
| Dimensions |
| Housing diameter/depth (mm) |
Dia 245 mm / D 58 mm |
| Weights |
| Weight (without packaging) |
1.3 kg |
| Other |
| free hotline |
Yes |
| Warranty period |
1 y |
| last modified: |
31.07.2014 |
