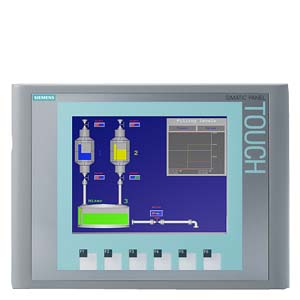

SIMATIC HMI KTP600 BASIC COLOR PN, BASIC PANEL, KEY AND TOUCH OPERATION, 6" TFT DISPLAY, 256 COLORS, PROFINET INTERFACE, CONFIGURATION FROM WINCC FLEXIBLE 2008 SP2 COMPACT/ WINCC BASIC V10.5/ STEP7 BASIC V10.5, CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD |
| Product type designation |
| Display |
| Design of display |
TFT |
| Screen diagonal |
5.7 in |
| Display width |
115.2 mm |
| Display height |
86.4 mm |
| Number of colors |
256 |
| Resolution (pixels) |
| ● Horizontal image resolution |
320 |
| ● Vertical image resolution |
240 |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| ● Dimmable backlight |
No |
| Control elements |
| Keyboard |
| ● Number of function keys |
6 |
| ● Keys with LED |
No |
| ● System keys |
No |
| ● Numeric/alphabetical input |
|
| — Numeric keyboard |
Yes; Onscreen keyboard |
| — Alphanumeric keyboard |
Yes; Onscreen keyboard |
| Touch operation |
| ● Design as touch screen |
Yes |
| Installation type/mounting |
| Mounting in portrait format possible |
Yes |
| Mounting in landscape format possible |
Yes |
| Supply voltage |
| Type of supply voltage |
DC |
| Rated value (DC) |
24 V |
| permissible range, lower limit (DC) |
19.2 V |
| permissible range, upper limit (DC) |
28.8 V |
| Input current |
| Current consumption (rated value) |
0.35 A |
| Inrush current A²s |
0.5 A²·s |
| Power |
| Power consumption, typ. |
9 W |
| Memory |
| Flash |
Yes |
| RAM |
Yes |
| Usable memory for user data |
1 Mbyte |
| Type of output |
| Acoustics |
|
| ● Buzzer |
Yes |
| ● Speaker |
No |
| Time of day |
| Clock |
| ● Hardware clock (real-time clock) |
No |
| ● Software clock |
Yes |
| ● Battery-backed |
No |
| ● Synchronizable |
Yes |
| Interfaces |
| Number of RS 485 interfaces |
0 |
| Number of USB interfaces |
0 |
| Number of SD card slots |
0 |
| Number of parallel interfaces |
0 |
| Number of 20 mA interfaces (TTY) |
0 |
| Number of RS 232 interfaces |
0 |
| Number of RS 422 interfaces |
0 |
| Number of other interfaces |
0 |
| With software interfaces |
No |
| Industrial Ethernet |
| ● Number of industrial Ethernet interfaces |
1 |
| ● Industrial Ethernet status LED |
2 |
| Protocols |
| PROFINET |
Yes |
| PROFINET IO |
No |
| IRT supported |
No |
| PROFIBUS |
No |
| MPI |
No |
| Protocols (Ethernet) |
| ● TCP/IP |
Yes |
| ● DHCP |
Yes |
| ● SNMP |
Yes |
| ● DCP |
Yes |
| ● LLDP |
Yes |
| WEB characteristics |
| ● HTTP |
No |
| ● HTML |
No |
| Further protocols |
| ● CAN |
No |
| ● MODBUS |
Yes; Modicon (MODBUS TCP/IP) |
| ● Supports protocol for EtherNet/IP |
Yes |
| Interrupts/diagnostics/status information |
| Diagnostic messages |
| ● Diagnostic information readable |
No |
| Degree and class of protection |
| IP (at the front) |
IP65 |
| Enclosure Type 4 at the front |
Yes |
| Enclosure type 4x at the front |
Yes |
| IP (rear) |
IP20 |
| Standards, approvals, certificates |
| CE mark |
Yes |
| KC approval |
Yes |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| Marine approval |
| ● Germanischer Lloyd (GL) |
Yes |
| ● American Bureau of Shipping (ABS) |
Yes |
| ● Bureau Veritas (BV) |
Yes |
| ● Det Norske Veritas (DNV) |
Yes |
| ● Lloyds Register of Shipping (LRS) |
Yes |
| ● Nippon Kaiji Kyokai (Class NK) |
Yes |
| ● Polski Rejestr Statkow (PRS) |
Yes |
| Use in hazardous areas |
| ● ATEX Zone 2 |
No |
| ● ATEX Zone 22 |
No |
| ● cULus Class I Zone 1 |
No |
| ● cULus Class I Zone 2, Division 2 |
No |
| ● FM Class I Division 2 |
No |
| Ambient conditions |
| Mounting position |
vertical |
| maximum permissible angle of inclination without external ventilation |
35° |
| Operating temperature |
| ● Operation (vertical installation) |
|
| — in vertical mounting position, minimum |
0 °C |
| — in vertical mounting position, maximum |
50 °C |
| ● Operation (max. tilt angle) |
|
| — at maximum tilt angle, minimum |
0 °C |
| — at maximum tilt angle, maximum |
40 °C |
| ● Operation (vertical installation, portrait format) |
|
| — in vertical mounting position, minimum |
0 °C |
| — in vertical mounting position, maximum |
50 °C |
| ● Operation (max. tilt angle, portrait format) |
|
| — at maximum tilt angle, minimum |
0 °C |
| — at maximum tilt angle, maximum |
40 °C |
| Storage/transport temperature |
| ● Min. |
-30 °C |
| ● max. |
60 °C |
| Relative humidity |
| ● Operation, max. |
90 % |
| Operating systems |
| proprietary |
Yes |
| Executable with configuration operating system |
| ● other |
No |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
Yes |
| Process value display (output) |
Yes |
| Process value default (input) possible |
Yes |
| Recipe administration |
Yes |
| Configuration software |
| ● STEP 7 Basic (TIA Portal) |
Yes; via integrated WinCC Basic (TIA Portal) |
| ● STEP 7 Professional (TIA Portal) |
Yes; via integrated WinCC Basic (TIA Portal) |
| ● WinCC flexible Compact |
Yes |
| ● WinCC flexible Standard |
Yes |
| ● WinCC flexible Advanced |
Yes |
| ● WinCC Basic (TIA Portal) |
Yes |
| ● WinCC Comfort (TIA Portal) |
Yes |
| ● WinCC Advanced (TIA Portal) |
Yes |
| ● WinCC Professional (TIA Portal) |
Yes |
| Languages |
| Online languages |
| ● Number of online/runtime languages |
5 |
| Languages |
| ● Languages per project |
32 |
| ● Languages |
|
| — D |
Yes |
| — GB |
Yes |
| — F |
Yes |
| — I |
Yes |
| — E |
Yes |
| — Chinese traditional |
Yes |
| — Chinese simplified |
Yes |
| — DK |
Yes |
| — FIN |
Yes |
| — GR |
Yes |
| — J |
Yes |
| — KP / ROK |
Yes |
| — NL |
Yes |
| — N |
Yes |
| — PL |
Yes |
| — P |
Yes |
| — RUS |
Yes |
| — S |
Yes |
| — CZ |
Yes |
| — SK |
Yes |
| — TR |
Yes |
| — H |
Yes |
| Functionality under WinCC (TIA Portal) |
| Libraries |
Yes |
| Task planner |
|
| ● time-controlled |
No |
| ● task-controlled |
Yes |
| Help system |
|
| ● Number of characters per info text |
320 |
| Message system |
| ● Number of alarm classes |
32 |
| ● Number of bit messages |
200 |
| ● Number of analog messages |
15 |
| ● System messages HMI |
Yes |
| ● Number of characters per message |
80 |
| ● Number of process values per message |
8 |
| ● Message indicator |
Yes |
| ● Message buffer |
|
| — Number of entries |
256 |
| — Circulating buffer |
Yes |
| — retentive |
Yes |
| — maintenance-free |
Yes |
| Recipe administration |
| ● Number of recipes |
5 |
| ● Data records per recipe |
20 |
| ● Entries per data record |
20 |
| ● Size of internal recipe memory |
40 kbyte |
| ● Recipe memory expandable |
No |
| Variables |
| ● Number of variables per device |
500 |
| ● Number of variables per screen |
30 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structs |
No |
| ● Arrays |
Yes |
| Images |
| ● Number of configurable images |
50 |
| ● Permanent window/default |
Yes |
| ● Global image |
Yes |
| ● Start screen configurable |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
| Image objects |
| ● Number of objects per image |
30 |
| ● Text fields |
Yes |
| ● I/O fields |
Yes |
| ● Graphic I/O fields (graphics list) |
Yes |
| ● Symbolic I/O fields (text list) |
Yes |
| ● Date/time fields |
Yes |
| ● Switches |
Yes |
| ● Buttons |
Yes |
| ● Graphic view |
Yes |
| ● Icons |
Yes |
| ● Geometric objects |
Yes |
| Complex image objects |
| ● Number of complex objects per screen |
5 |
| ● Alarm view |
Yes |
| ● Trend view |
Yes |
| ● User view |
Yes |
| ● Status/control |
No |
| ● Sm@rtClient view |
No |
| ● Recipe view |
Yes |
| ● f(x) trend view |
No |
| ● System diagnostics view |
No |
| ● Media Player |
No |
| ● Bar graphs |
Yes |
| ● Sliders |
No |
| ● Pointer instruments |
No |
| ● Analog/digital clock |
No |
| Lists |
| ● Number of text lists per project |
150 |
| ● Number of entries per text list |
30 |
| ● Number of graphics lists per project |
100 |
| ● Number of entries per graphics list |
30 |
| Archiving |
| ● Number of archives per device |
0 |
| Security |
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Number of users |
50 |
| ● Password export/import |
No |
| ● SIMATIC Logon |
No |
| Character sets |
| ● Keyboard |
|
| — US American (English) |
Yes |
| ● Character sets |
|
| — Tahoma |
Yes |
| — Arial |
No |
| — Courier New |
No |
| — WinCC flexible Standard |
Yes |
| — Ideographic languages |
Yes |
| ● Font size freely scalable |
No |
| ● Additional character sets can be loaded |
No |
| Transfer (upload/download) |
| ● MPI/PROFIBUS DP |
No |
| ● USB |
No |
| ● Ethernet |
Yes |
| ● using external storage medium |
No |
| Process coupling |
| ● S7-1200 |
Yes |
| ● S7-1500 |
Yes |
| ● S7-200 |
Yes |
| ● S7-300/400 |
Yes |
| ● LOGO! |
Yes |
| ● Win AC |
Yes |
| ● SINUMERIK |
No |
| ● SIMOTION |
No |
| ● Allen Bradley (EtherNet/IP) |
Yes |
| ● Allen Bradley (DF1) |
No |
| ● Mitsubishi (MC TCP/IP) |
Yes |
| ● Mitsubishi (FX) |
No |
| ● OMRON (FINS TCP) |
No |
| ● OMRON (LINK/Multilink) |
No |
| ● Modicon (Modbus TCP/IP) |
Yes |
| ● Modicon (Modbus) |
No |
| Service tools/configuration aids |
| ● Clean screen |
Yes |
| ● Touch calibration |
Yes |
| ● Backup/restore |
Yes |
| ● Backup/Restore automatically |
No |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
| ● Delta transfer |
No |
| I/O / Options |
| I/O devices |
|
| ● Printer |
No |
| ● MultiMediaCard |
No |
| ● SD card |
No |
| ● USB memory |
No |
| Mechanics/material |
| Type of housing (front) |
|
| ● plastic |
Yes |
| ● aluminum |
No |
| ● Stainless steel |
No |
| Dimensions |
| Width of the housing front |
214 mm |
| Height of housing front |
158 mm |
| Mounting cutout/device depth (W x H x T) |
|
| ● Mounting cutout, width |
197 mm |
| ● Mounting cutout, height |
141 mm |
| Device depth |
44 mm |
| Weights |
| Without packaging |
1.07 kg |
| With packaging |
1.32 kg |
| last modified: |
13.10.2014 |
