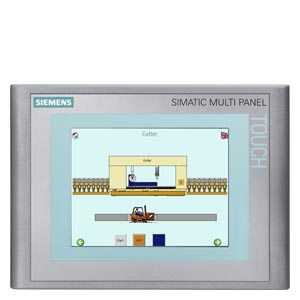

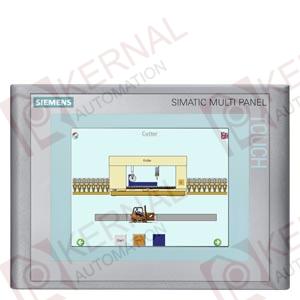

SIMATIC MP 177 6" TOUCH MULTI PANEL W. RETENTIVE MEMORY 5.7" TFT DISPLAY 2 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE 2008 COMPACT OR HIGHER ******************************* FOR THIS PRODUCT A DELIVERY STOP WILL BE DECLARED FROM OCTOBER 1ST, 2014. INFORMATION ABOUT SUCCESSOR SEE SIMATIC UPDATE ID: 62977695 FOR FURTHER QUESTIONS PLEASE APPROACH YOUR SIEMENS CONTACT PERSON. |
| General information |
| Customer-specific configuration |
Yes |
| Display |
| Design of display |
TFT |
| Screen diagonal |
5.7 in |
| Size |
5.7" |
| Display type |
TFT, 65536 colors |
| Color type |
Colors |
| Resolution (pixels) |
| ● Horizontal image resolution |
320 |
| ● Vertical image resolution |
240 |
| ● Resolution (WxH in pixel) |
320 x 240 |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| Control elements |
| Control elements |
Touch screen |
| Operating options |
Touch |
| Connection for mouse/keyboard/barcode reader |
USB / USB / USB |
| Keyboard |
| ● Numeric/alphabetical input |
Yes (on-screen keyboard) / Yes (on-screen keyboard) |
| — hexadecimal keyboard |
Yes; Onscreen keyboard |
| Touch operation |
| ● Touch screen |
analog, resistive |
| ● Design as touch screen |
Yes |
| Supply voltage |
| Type of supply voltage |
DC |
| Processor |
| Processor |
RISC 32-bit, 520 MHz |
| Processor type |
RISC 32-bit |
| Memory |
| Usable memory for user data |
2 Mbyte |
| Main memory |
|
| ● Capacity of main memory, maximum |
128 Mbyte |
| Time of day |
| Clock |
| ● Type |
Hardware clock, battery backup, synchronizable |
| ● Hardware clock (real-time clock) |
Yes |
| ● Battery-backed |
Yes |
| ● Synchronizable |
Yes |
| Interfaces |
| Interfaces |
1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s) |
| Number of RS 485 interfaces |
1; together with RS422 |
| ● Transmission rate, max. |
12 Mbit/s |
| USB port |
1 x USB |
| Multimedia card/SD card slot |
combined, from E-status 016 in connection with WinCC flexible 2008 SP1, MMC max. 128 MB / SD max. 512 MB |
| Special interfaces |
No |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
1 x Ethernet (RJ45) |
| ● Industrial Ethernet status LED |
2 |
| Protocols |
| PROFIBUS |
Yes |
| MPI |
Yes |
| Protocols (Ethernet) |
| ● TCP/IP |
Yes |
| Protocols (terminal link) |
| ● Sm@rtService |
Yes |
| EMC |
| Emission of radio interference acc. to EN 55 011 |
| ● Limit class A, for use in industrial areas |
Yes; EN 61000-6-4, interference emission: Intended for use in industrial areas. |
| Degree and class of protection |
| Front |
IP65, NEMA 4, NEMA 4x, NEMA 12 (when installed) |
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
| Standards, approvals, certificates |
| Certifications |
CE, GL, FM Class I Div. 2, cULus, C-TICK, NEMA 4, NEMA 4x, NEMA 12 |
| cULus |
Yes |
| EMC |
The product is designed for use in industrial environments. When used in residential areas, the emission of radio interference according to limit class B of EN 55011 must be ensured. For further information please refer to the user documentation. |
| Suitable for safety functions |
No |
| Marine approval |
| ● Germanischer Lloyd (GL) |
Yes |
| ● American Bureau of Shipping (ABS) |
No |
| ● Bureau Veritas (BV) |
No |
| ● Det Norske Veritas (DNV) |
No |
| ● Lloyds Register of Shipping (LRS) |
No |
| ● Nippon Kaiji Kyokai (Class NK) |
No |
| ● Polski Rejestr Statkow (PRS) |
No |
| Use in hazardous areas |
| ● EX zone 2 |
No |
| ● EX zone 22 |
No |
| ● FM Class I Division 2 |
Yes |
| Ambient conditions |
| Mounting position |
vertical |
| Operating temperature |
| ● Operation |
0 °C to 50 °C |
| Storage/transport temperature |
| ● Transport, storage |
-20 °C to 70 °C |
| Relative humidity |
| ● Operation, max. |
90 % |
| Operating systems |
| Operating system |
Windows CE (Version 5) |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
Yes |
| Process value display (output) |
Yes |
| Process value default (input) possible |
Yes |
| Recipe administration |
Yes |
| Configuration software |
| ● STEP 7 Basic (TIA Portal) |
No |
| ● STEP 7 Professional (TIA Portal) |
No |
| ● WinCC flexible Compact |
Yes |
| ● WinCC flexible Standard |
Yes |
| ● WinCC flexible Advanced |
Yes |
| ● WinCC Basic (TIA Portal) |
No |
| ● WinCC Comfort (TIA Portal) |
Yes |
| ● WinCC Advanced (TIA Portal) |
Yes |
| ● WinCC Professional (TIA Portal) |
Yes |
| ● Configuration tool |
WinCC flexible Compact Version 2008 SP1 or higher (to be ordered separately) |
| ● 2nd configuration kit |
WinCC flexible Compact |
| — Version |
Version 2008 SP1 |
| — Configuration tool |
WinCC flexible |
| — Type |
Compact |
| Languages |
| Online languages |
| ● Number of online/runtime languages |
5 |
| Languages |
| ● Languages per project |
32 |
| Functionality under WinCC (TIA Portal) |
| Libraries |
Yes |
| Task planner |
Yes |
| Help system |
Yes |
| ● Number of characters per info text |
70 |
| Message system |
| ● Number of alarm classes |
32 |
| ● Number of messages |
2 000 |
| ● Bit messages |
Yes |
| ● Analog messages |
Yes |
| ● Number of bit messages |
2 000 |
| ● Number of analog messages |
2 000 |
| ● Telegram message procedure Alarm S |
Yes |
| ● System messages HMI |
Yes |
| ● System messages PLC |
Yes |
| ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) |
Yes |
| ● Message length (in characters) |
80 |
| ● Lines |
1 |
| ● Number of process values per message |
8 |
| ● Acknowledgment groups |
Yes |
| ● Message indicator |
Yes |
| ● First/last value |
Yes |
| Recipe administration |
| ● Number of recipes |
100 |
| ● Data records per recipe |
200 |
| ● Entries per data record |
200 |
| ● Recipe memory |
32 KB integrated Flash, expandable |
| Variables |
| ● Number of variables per device |
1 000 |
| ● Number of variables per screen |
50 |
| ● Number of variables |
1 000 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structs |
No |
| ● Type Date & Time |
1 000 |
| Images |
| ● Number of configurable images |
500 |
| ● Permanent window/default |
Yes |
| ● Start screen configurable |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
| Image objects |
| ● Text objects |
2,500 text elements |
| ● Fields per image |
50 |
| ● Date/time fields |
30 |
| ● Return |
Yes |
| ● Graphics object |
Bit maps, icons, vector graphics |
| — Icons |
500 |
| Complex image objects |
| ● Status/control |
With SIMATIC S7 |
| ● dynamic objects |
Diagrams, bar graphs, sliders, analog display, invisible buttons |
| — Number of objects per project |
500 |
| — Number per image |
5 |
| ● Methods |
Trend / profile |
| ● Limit value lines |
Yes |
| ● Number of bars per chart |
5 |
| ● Limit value lines |
Yes |
| ● alphanumeric fields |
1 000 |
| ● alphanumeric fields per image |
50 |
| ● numerical fields |
1 000 |
| ● numerical fields per image |
50 |
| ● Password errors |
1 000 |
| ● Number of slides per image |
5 |
| ● Number of analog indicators per image |
5 |
| ● Number of visible switches per project |
1 000 |
| ● visible switches per image |
100 |
| ● hidden switches per image |
100 |
| ● Number of status switches per project |
1 000 |
| ● Button status switches per image |
100 |
| ● Number of selector switches per project |
200 |
| ● Selector switches per image |
100 |
| ● Number of signal lamps per project |
1 000 |
| ● Signal lamps per image |
100 |
| Attributes for dynamic objects |
| ● Color change |
Yes |
| ● X/Y movement |
Yes |
| ● Hide |
Yes |
| ● Angle of turn |
No |
| Lists |
| ● Number of text lists per project |
300 |
| ● Number of text lists per image |
10 |
| ● Number of entries per text list |
30 |
| ● Number of graphics lists per project |
100 |
| ● Number of graphic lists per image |
10 |
| ● Number of entries per graphics list |
30 |
| Security |
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Password export/import |
Yes |
| Logging through printer |
| ● Recording/Printing |
Alarms, report (shift report), color print, hardcopy |
| Transfer (upload/download) |
| ● Transfer of configuration |
MPI/PROFIBUS DP, serial, USB, Ethernet, automatic transfer recognition |
| Process coupling |
| ● Connection to controller |
S5, S7-200, S7- 300/400, TI 505, Win AC, SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus), weitere Fremdtreiber siehe Kapitel "Systemkopplungen" |
| ● S7-1200 |
Yes |
| ● S7-1500 |
Yes |
| ● S7-200 |
Yes |
| — PPI (point-to-point) |
Yes |
| — PPI network |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| — Ethernet |
Yes |
| ● S7-300/400 |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| — PROFINET |
Yes |
| ● S5 |
Yes |
| — PROFIBUS DP |
Yes |
| ● TI 505 |
Yes |
| ● Allen Bradley (DF1) |
Yes |
| ● Allen Bradley (DF485) |
Yes |
| ● Mitsubishi (FX) |
Yes |
| ● Mitsubishi (MP4) |
Yes |
| ● Telemecanique (Uni-Telway) |
Yes |
| ● OMRON (LINK/Multilink) |
Yes |
| ● Modicon (Modbus) |
Yes |
| ● GE-Fanuc (SNP) |
Yes |
| Functions |
| ● TAB sequence |
Yes |
| ● Calculating functions |
Yes |
| ● Animate |
Yes |
| Service tools/configuration aids |
| ● Clean screen |
Yes |
| ● Touch calibration |
Yes |
| ● Backup/restore |
Yes |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
| I/O / Options |
| I/O devices |
Printer, barcode reader |
| ● MultiMediaCard |
Yes |
| ● SD card |
Yes; WP gate is not supported. |
| ● USB memory |
Yes |
| Additional software components loadable |
Yes |
| Dimensions |
| Width of the housing front |
212 mm |
| Height of housing front |
156 mm |
| Mounting cutout/device depth (W x H x T) |
198 mm x 142 mm / 45 mm device depth |
| Weights |
| Weight (without packaging) |
0.85 kg; max. |
| other |
| free hotline |
Yes |
| Warranty period |
1 y; 10 years replacement from discontinuation |
