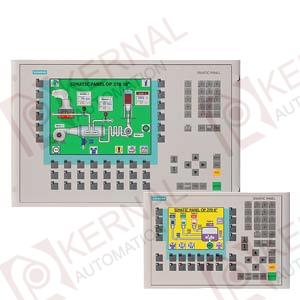

SIMATIC MP270B KEYS MULTI PANEL 10.4" TFT DISPLAY 4 MB CONFIGURING MEMORY, CONFIGURABLE W. PROTOOL FROM VERS. V6.0 |
| Display |
| Design of display |
TFT |
| Screen diagonal |
10.4 in |
| Size |
10.4" |
| Display type |
TFT, 256 colors |
| Color type |
Colors |
| Resolution (pixels) |
| ● Horizontal image resolution |
640 |
| ● Vertical image resolution |
480 |
| ● Resolution (WxH in pixel) |
640 x 480 |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
50 000 h |
| Control elements |
| Control elements |
Membrane keyboard |
| Operating options |
Keys |
| Function keys, programmable |
36 function keys, 28 with LEDs |
| Connection for mouse/keyboard/barcode reader |
USB / USB / USB |
| Keyboard |
| ● Membrane keyboard |
Yes |
| ● freely inscribable membrane keys |
Yes |
| ● Number of function keys with LEDs |
28 |
| — Number of multi-key operations |
28 |
| ● Numeric/alphabetical input |
Yes / Yes |
| — hexadecimal keyboard |
Yes |
| ● Multi-key operation |
Yes |
| Touch operation |
| ● Design as touch screen |
No |
| Special operator controls |
| ● Illuminated pushbutton |
Yes |
| Supply voltage |
| UPS connectable (serial) |
Yes |
| Input current |
| Rated current |
0.9 A |
| Inrush current A²s |
0.5 A²·s |
| Power |
| Power |
22 W |
| Processor |
| Processor type |
RISC 32-bit |
| Drives |
| Diskette drive |
No |
| CD-ROM |
No |
| Hard disk |
No |
| Memory |
| Usable memory for user data |
4 096 kbyte |
| Battery |
| Backup battery |
| ● Backup battery |
optional 3.6 V |
| — minimum backup duration |
3 y |
| Type of output |
| Info LED |
Yes |
| Power LED |
No |
| Error LED |
Yes |
| Time of day |
| Clock |
| ● Type |
Hardware clock, battery backup, synchronizable |
| ● Hardware clock (real-time clock) |
Yes |
| ● Software clock |
No |
| ● Battery-backed |
Yes |
| ● Synchronizable |
Yes |
| ● battery-backed and synchronizable |
Yes |
| Interfaces |
| Interfaces |
2 x RS232, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s) |
| Number of RS 485 interfaces |
1 |
| ● Transmission rate, max. |
12 Mbit/s |
| USB port |
1 x USB |
| PC card slot |
1 x PC card slot |
| CF card slot |
1 x CF card slot |
| Special interfaces |
No |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
1 x Ethernet (RJ45) |
| Degree and class of protection |
| Front |
IP65 |
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
| Standards, approvals, certificates |
| Certifications |
CE, GL, ABS, DNV, LRS, FM Class I Div. 2, cULus, EX Zone 2/22, C-TICK |
| cULus |
Yes |
| RCM (formerly C-TICK) |
Yes |
| Ambient conditions |
| Mounting position |
vertical |
| maximum permissible angle of inclination without external ventilation |
/- 35 ° |
| Storage/transport temperature |
| ● Transport, storage |
-20 °C to 60 °C |
| Relative humidity |
| ● Operation, max. |
90 % |
| Operating systems |
| Operating system |
Windows CE |
| Configuration |
| Configuration software |
| ● Configuration tool |
ProTool Version 6 SP 3 or higher, or WinCC flexible Standard Version 2004 or higher (to be ordered separately) |
| ● 1st configuration kit |
ProTool |
| — Version |
Version 6 SP 3 |
| — Configuration tool |
ProTool |
| ● 2nd configuration kit |
WinCC flexible Standard |
| — Version |
Version 2004 |
| — Configuration tool |
WinCC flexible |
| — Type |
Standard |
| Languages |
| Online languages |
| ● Number of online/runtime languages |
5 |
| Languages |
| ● Languages per project |
32 |
| Functionality under WinCC (TIA Portal) |
| Libraries |
Yes |
| Number of Visual Basic Scripts |
|
| ● Debugging in the simulator |
No |
| Task planner |
Yes |
| Help system |
Yes |
| ● Number of characters per info text |
70 |
| ● Number of tooltips |
0 |
| Message system |
| ● Number of alarm classes |
32 |
| ● Number of messages |
4 000 |
| ● Bit messages |
Yes |
| ● Analog messages |
Yes |
| ● Number of bit messages |
4 000 |
| ● Number of analog messages |
4 000 |
| ● Telegram message procedure Alarm S |
Yes |
| ● System messages HMI |
Yes |
| ● System messages PLC |
Yes |
| ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.) |
Yes |
| ● Message length (in characters) |
70 |
| ● Lines |
1 |
| ● Number of process values per message |
8 |
| ● Acknowledgment groups |
Yes |
| ● Message indicator |
Yes |
| ● Acoustic feedback |
No |
| ● First/last value |
Yes |
| Recipe administration |
| ● Number of recipes |
300 |
| ● Data records per recipe |
500 |
| ● Entries per data record |
1 000 |
| ● Recipe memory |
64 KB integrated Flash, expandable |
| Variables |
| ● Number of variables per device |
2 048 |
| ● Number of variables per screen |
200 |
| ● Number of variables |
1 000 |
| ● Initial values |
2 048 |
| ● Limit values |
Yes |
| ● Multiplexing |
Yes |
| ● Structs |
Yes |
| ● Type Date & Time |
2 048 |
| Images |
| ● Number of configurable images |
500 |
| ● Permanent window/default |
Yes |
| ● Start screen configurable |
Yes |
| ● Image selection by PLC |
Yes |
| ● Image number in the PLC |
Yes |
| Image objects |
| ● Text objects |
10,000 text elements |
| ● Fields per image |
200 |
| ● Date/time fields |
200 |
| ● Index of screen context |
No |
| ● Return |
Yes |
| ● Graphics object |
Bit maps, icons, vector graphics |
| — Icons |
1 000 |
| — Icon (full screen) |
0 |
| Complex image objects |
| ● Status/control |
With SIMATIC S7 |
| ● dynamic objects |
Diagrams, bar graphs, sliders, analog display, invisible buttons |
| — Number of objects per project |
1 000 |
| — Number per image |
10 |
| ● Methods |
Trend / profile |
| ● Limit value lines |
Yes |
| ● Number of bars per chart |
10 |
| ● Limit value lines |
Yes |
| ● alphanumeric fields |
300 |
| ● alphanumeric fields per image |
200 |
| ● numerical fields |
2 048 |
| ● numerical fields per image |
200 |
| ● Password errors |
2 048 |
| ● Number of slides per image |
10 |
| ● Number of analog indicators per image |
10 |
| ● Number of visible switches per project |
200 |
| ● visible switches per image |
200 |
| ● hidden switches per image |
200 |
| ● Number of status switches per project |
200 |
| ● Button status switches per image |
200 |
| ● Number of selector switches per project |
200 |
| ● Selector switches per image |
200 |
| ● Number of decade switches per project |
200 |
| ● Decade switches per image |
200 |
| ● Number of signal lamps per project |
200 |
| ● Signal lamps per image |
200 |
| Attributes for dynamic objects |
| ● Color change |
Yes |
| ● X/Y movement |
Yes |
| ● Hide |
Yes |
| ● Angle of turn |
No |
| Lists |
| ● Number of text lists per project |
500 |
| ● Number of text lists per image |
200 |
| ● Number of entries per text list |
256 |
| ● Number of graphics lists per project |
400 |
| ● Number of graphic lists per image |
200 |
| ● Number of entries per graphics list |
256 |
| Archiving |
| ● Number of archives per device |
20 |
| ● Number of measuring points per project |
20 |
| ● Number of entries per archive |
10 000 |
| ● Message archive |
Yes |
| ● Process value archive |
Yes |
| ● Archiving methods |
Sequence archive, circular log, alarm log, process value archive |
| — Sequential archive |
Yes |
| — Short-term archive |
Yes |
| ● Memory location |
PC card, CF card, Ethernet |
| — PC card |
Yes |
| — CF card |
Yes |
| — USB memory |
No |
| — Ethernet |
Yes |
| ● Data storage format |
CSV file, readable, e.g. with MS Excel, MS Access |
| — CSV |
Yes |
| — TXT |
No |
| ● external evaluation |
Readable, e.g. with MS Excel, MS Access, etc. |
| ● Size of archive |
depending on free memory on ext. card/stick or on free hard disk space via network drive |
| ● Online evaluation |
via trends |
| — via trends |
Yes |
| Filters |
| ● cyclic |
Yes |
| ● Tolerance |
Yes |
| ● Change |
Yes |
| Security |
| ● Number of user groups |
50 |
| ● Number of user rights |
32 |
| ● Password export/import |
Yes |
| Logging through printer |
| ● Recording/Printing |
Alarms, report (shift report), color print, hardcopy |
| Transfer (upload/download) |
| ● Transfer of configuration |
MPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition |
| Process coupling |
| ● Connection to controller |
S5, S7-200, S7- 300/400, TI 505, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Allen Bradley (DF485), Mitsubishi (FX), Telemecanique (ADJUST), OMRON (LINK/Multilink), Modicon (Modbus), for further non-Siemens drivers, see section on "System interfaces" |
| ● S7-200 |
Yes |
| — PPI (point-to-point) |
Yes |
| — PPI network |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| ● S7-300/400 |
Yes |
| — MPI |
Yes |
| — PROFIBUS DP |
Yes |
| — PROFINET |
Yes |
| ● S5 |
Yes |
| — serial |
Yes |
| — PROFIBUS DP |
Yes |
| ● TI 505 |
Yes |
| ● Allen Bradley (DF1) |
Yes |
| ● Allen Bradley (DF485) |
Yes |
| ● Mitsubishi (FX) |
Yes |
| ● Mitsubishi (MP4) |
Yes |
| ● Telemechanique (ADJUST) |
Yes |
| ● Telemecanique (Uni-Telway) |
Yes |
| ● OMRON (LINK/Multilink) |
Yes |
| ● Modicon (Modbus) |
Yes |
| ● GE-Fanuc (SNP) |
Yes |
| Functions |
| ● Key repeat |
No |
| ● TAB sequence |
Yes |
| ● Calculating functions |
Yes |
| ● Animate |
Yes |
| ● Menu tree editor |
No |
| ● Unit switchover |
No |
| Service tools/configuration aids |
| ● Clean screen |
No |
| ● Touch calibration |
No |
| ● Backup/restore |
Yes |
| ● Simulation |
Yes |
| ● Device switchover |
Yes |
| ● Delta transfer |
Yes |
| ● Monitoring function for battery and memory |
Yes |
| ● Trace (operation archive) |
No |
| Expandability/openness |
| ● Open Platform Program |
Yes |
| I/O / Options |
| I/O devices |
Printer, barcode reader |
| Dimensions |
| Width of the housing front |
483 mm |
| Height of housing front |
310 mm |
| Weights |
| Weight (without packaging) |
6 kg |
| other |
| free hotline |
Yes |
| Warranty period |
1 y |
| last modified: |
13.10.2014 |
