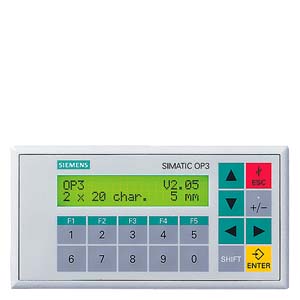

OP 3 OPERATOR PANEL WITH CABLE FOR CONNECTION TO SIMATIC S7, SER. CABLE FOR CONFIGURING AND CABLE FOR POWER SUPPLY |
| General information |
| Customer-specific configuration |
No |
| Display |
| graphics-enabled |
No |
| Display type |
Black/white |
| Type |
Lines |
| Line display |
LC display |
| ● Number of lines |
2 |
| ● Number of characters per line |
20 |
| Number of grayscales |
0 |
| Color type |
Black/white |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
200 000 h |
| Control elements |
| Operating options |
Keys |
| Function keys, programmable |
5 function keys |
| Connection for mouse/keyboard/barcode reader |
- / - / - |
| Keyboard |
| ● Membrane keyboard |
Yes |
| ● freely inscribable membrane keys |
No |
| ● Numeric/alphabetical input |
Yes / No |
| — hexadecimal keyboard |
No |
| ● Multi-key operation |
No |
| Touch operation |
| ● Design as touch screen |
No |
| Supply voltage |
| Type of supply voltage |
24 V DC |
| UPS connectable (serial) |
No |
| Input current |
| Rated current |
0.07 A |
| Processor |
| Processor type |
X86 |
| Drives |
| Diskette drive |
No |
| CD-ROM |
No |
| Hard disk |
No |
| Memory |
| Usable memory for user data |
128 kbyte |
| Battery |
| Backup battery |
| ● Backup battery |
No |
| — minimum backup duration |
0 y |
| Time of day |
| Clock |
| ● Type |
Software clock, no battery backup |
| ● Hardware clock (real-time clock) |
No |
| ● Software clock |
Yes |
| ● Battery-backed |
No |
| ● Synchronizable |
No |
| Interfaces |
| Interfaces |
1 x RS232, 1 x RS485 (max. 1.5 Mbit/s) |
| Number of RS 485 interfaces |
1 |
| ● Transmission rate, max. |
1.5 Mbit/s |
| USB port |
No |
| PC card slot |
No |
| CF card slot |
No |
| Number of parallel interfaces |
0 |
| Special interfaces |
No |
| With software interfaces |
No |
| Industrial Ethernet |
| ● Industrial Ethernet interface |
No |
| Degree and class of protection |
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
| Standards, approvals, certificates |
| Certifications |
CE, GL, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus |
| cULus |
Yes |
| RCM (formerly C-TICK) |
No |
| Ambient conditions |
| Mounting position |
vertical |
| maximum permissible angle of inclination without external ventilation |
/- 180 ° |
| Storage/transport temperature |
| ● Ambient temperature during storage, minimum |
-20 °C |
| ● Ambient temperature during storage, maximal |
60 °C |
| ● Transport, storage |
-20 °C to 60 °C |
| Relative humidity |
| ● Operation, max. |
85 % |
| Operating systems |
| Operating system |
Rmos |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
No |
| Process value display (output) |
No |
| Process value default (input) possible |
No |
| Recipe administration |
No |
| Configuration software |
| ● Configuration tool |
ProTool / Lite Version 2.51 or higher (to be ordered separately) |
| ● 1st configuration kit |
ProTool / Lite |
| — Version |
Version 2.51 |
| — Configuration tool |
ProTool |
| — Type |
Lite |
| I/O / Options |
| Additional software components loadable |
No |
| Dimensions |
| Width of the housing front |
148 mm |
| Height of housing front |
76 mm |
| Device depth |
25 mm |
| Weights |
| Weight (without packaging) |
0.25 kg |
| other |
| free hotline |
Yes |
| Warranty period |
1 y |
| last modified: |
13.10.2014 |
