Shell:Professional IP65 grade brushed aluminum alloy panel, heavy steel shock box, vacuum dust cooling system;

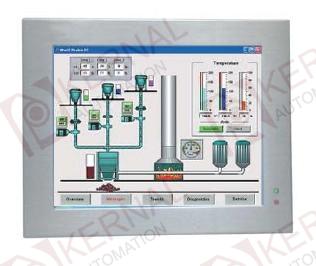

Display:Touch 15 ″ TFTIndustrial grade highlighted,1024*768,Support asynchronous VGA LCD display;
Installation:support panel flush mounting,VESA 75 installation,VESA 100 installation;
Dimensions:Dimensions=398*308*88.5(W*H*D),Hole size=375*291(W*H);
System Security: programmable hardware watchdog protection system security and stability of 7 *24 hours continuous operation;
Main Chipset:Intel Atom D525 NM10,Onboard Intel Atom D525 processor;
Vedio:High-speed graphics engine Intel GMA3150, DVMT memory support to 224MB;
Ethernet:Two high-speed Gigabit Industrial Ethernet adapter support PXE and WOL, RJ45 port;
Audio:ALC662 HD Audio Codec (Line_out;Mic_in);

I t f RS 232 1 RS 485 6 USB2 0 t

Interface:5个RS-232,1 x RS-232/485,6 x USB2.0;1 x LPT port;
Expansion Slots:One PCI expansion slot;
Power:12VDC(or 9~18VDC wide voltage input;);
Temperature: Operating Temperature -10 ℃ ~ 60 ℃, Storage temperature -40 ℃ ~ 80 ℃;
Applications: 7 * 24 hours of uninterrupted work in harsh environments (high dust, high temperature, complex electromagnetic environment); Acceptable customized for OEM or ODM custom production

C P U:Intel Dual-core Atom D525 1.8GHz Dual-core, four threads, 64-bit processors;
System memory:Dual-channel DDR3 2GB(Can be customized);
System Storage:250GB SATAII 2.5″Hard Disk(Can be customized);
