Model

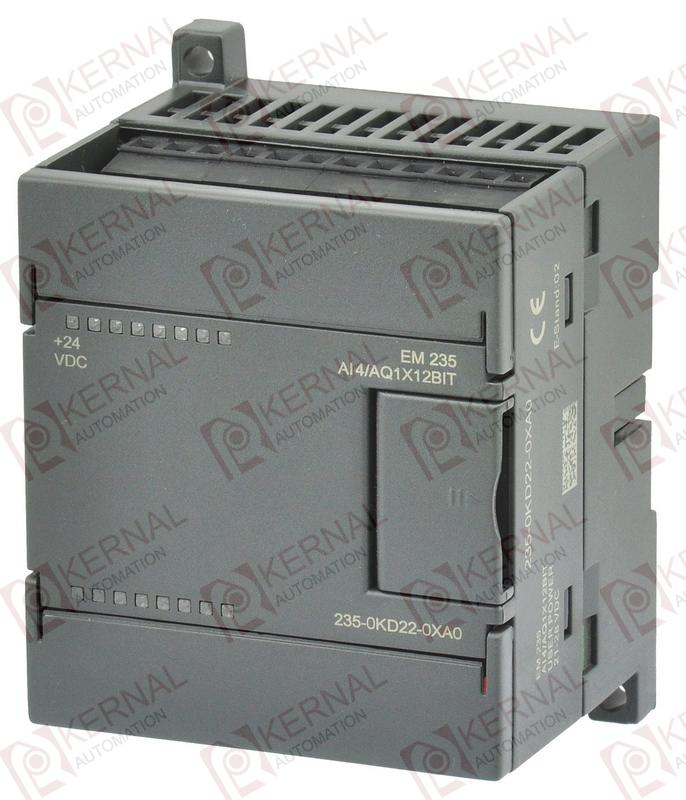

EM235 4 inputs/1 outputs ×12bits

Product  Description

4AI,1AO; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature

From bus current consumption

30mA

From L current consumption

60mA

Power loss

2W

Number of analog Input

4

Signal input type

Differential

Maximum input voltage

30V

Maximum input current

32mA

Voltange input range: Unipolar

0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V

Voltange input range: Bipolar

±1V, ±2.5V, ±5V, ±10V

±25mV, ±50mV, ±100mV, ±250mV, ±500mV,

current input range

0~20mA,

Resolution

12bits

Bipolar,full-scale range

0~32,000

Unipolar, full-scale range

-32，000~ 32，000

Analog to digital conversion time

<250µs

Output Feature

Number of analog Input

1

Input voltage range

-10~ 10V

Input current range

0~20mA

Load inpedance

·for voltage outputs

Min:5KΩ

·for current outputs

Max:0.5KΩ

Resolution

12 bits voltage output;

11 bits current output

Data word format

·Displayable:voltage output

-32，000~ 32，000

·Displayable:current output

0~32，000

Basic error

±0.5% of full range

Dimensions(W x H x D)(mm)

71.2×80×62

Order Number

235-0KD22-OXAO
