Eaton's Electronic Components Crack Complex Environmental Challenges, Enabling Stable Operation of Industrial Energy Storage

With the increasing degree of industrial automation, the stability of electronic systems is challenged by the increasing complexity of their external environment and operating conditions. At the same time, the design of energy storage systems is increasing in various industrial applications, and an excellent battery management system is one of the keys to cope with all kinds of failure risks and ensure the stable operation of industrial equipment and manufacturing processes.

In high and low voltage battery management systems for industrial energy storage applications, multiple modules perform functions such as power conversion, regulation, protection, monitoring and control. The efficiency and reliability of electronic components have a critical impact on the service life and safety of each module in the battery management system.

Multi-series products to solve complex industrial environments

Ensure stable and reliable operation of industrial energy storage systems

Industrial environments are complex and power systems are subject to high and low temperatures, vibration, noise, electromagnetic interference and other factors. Eaton Electronics provides power inductors, over-current and over-voltage circuit protection, sensors, capacitors and other electronic components suitable for industrial environments. They have good tolerance of voltage, current, power, frequency, temperature and other parameters, with a variety of choices, stable and reliable.

 Eaton offers shielded, semi-shielded, and unibody inductors with high current, low EMI characteristics over a wide operating temperature range, as well as other devices such as common-mode noise filtering and EMI noise reduction.

Circuit protection products can protect against high currents and transient voltages under the operation of industrial equipment, avoiding possible failures such as overloads, overvoltages and short circuits.

● Temperature and current sensors can provide accurate data for battery management systems to help them fulfil functions such as energy monitoring and management, power protection and control, and effectively improve equipment performance and reliability.

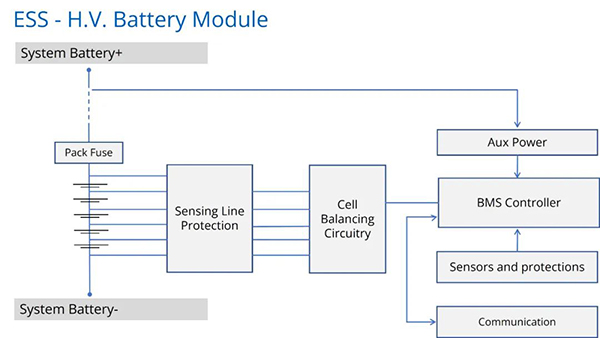

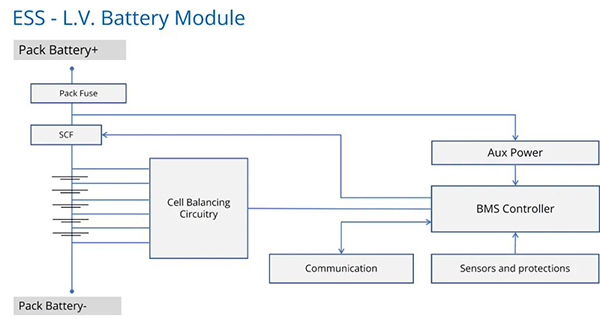

Escorting High and Low Voltage Battery Module Energy Storage Systems

Pack fuse

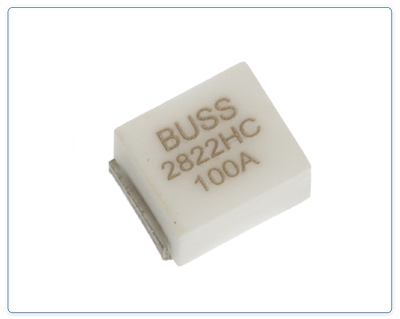

Overcurrent protection for high-current power cords: 2822HC fast-acting fuses

● 40 A to 125 A ultra-high current carrying capacity

● High-current chip fuses with high breaking capacity

● 7.7 x 6.0 x 4.3 mm surface mount package

● Rated voltage up to 80 Vdc

● Monolithic fuse solution for high-current applications
