USB interface ALLEN BRADLEY MicroLogix 1000 Series PLC programming adapter

Not made by ALLEN BRADLEY,OEM replacement cables

Introduction

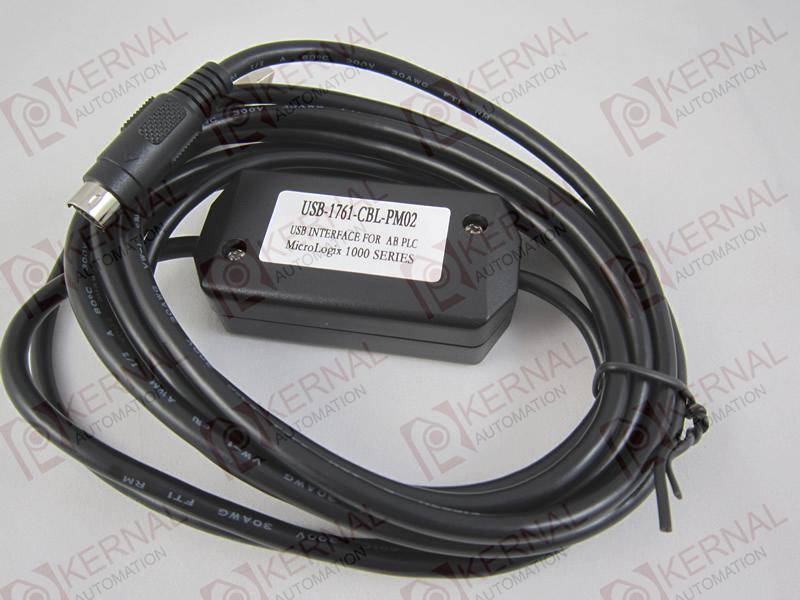

USB-1761-CBL-PM02 programming cable simulates the computer's USB interface as the traditional serial (known as COM interface), thus various existing programming softwares,communication softwares, monitoring softwares and other applications can be normally used. The two-color LED on the converter box indicates data’s transceiving status.
USB-1761-CBL-PM02 programming cable is applicable to Allen
Bradley MicroLogix 1000 series PLC.
USB-1761-CBL-PM02 principle and figure structure:

Functions
●Support USB-1761-CBL-PM02 operating system: Windows2000/XP (WinNT4/95/98/Me/DOS not included)
● support USB-1761-CBL-PM02 programming software version:RS Logix 500 and above
● fully compatible with USB 2.0 standard
● USB bus-powered, the current consumption of about 50 mA
● each PC only supports a USB cable programming
● temperature: -20 ~ 75 ℃
● Cable length: 2.5 meters, colors: black

System requirement
Please make sure your PC is IBM PC compatible and has the following system requirements before using the USB programming cable.
● Intel is compatible with 586DX4-100MHz CPU or higher
● A standard USB port (4-pin A plug)
● Operating system is Windows2000 or Windows XP

Setting of RSLogix
After completing Driver installation, the corresponding COM port for the USB-1761-CBL-PM02 programming cable will be displayed in the “Device Manager” of Window.

The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings.

And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces.
