| Product type designation |

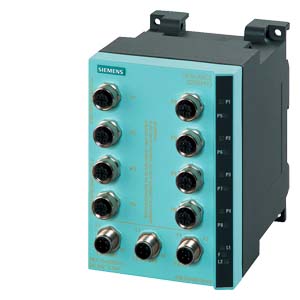

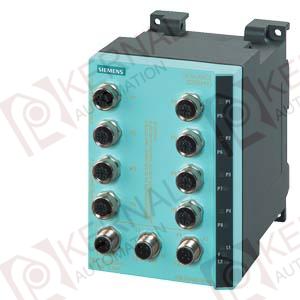

SCALANCE X208PRO |
| Product description |
|
|
SCALANCE X208PRO, MANAGED IE SWITCH, 8 X 10/100MBIT/S M12-PORTS, IP65/67, LED-DIAGNOSTICS, FAULT SIGNAL CONTACT, REDUNDANT POWER SUPPLY, PROFINET- IO DEVICE, NETWORK MANAGEMENT, OPERAT. IN RED. RING INCL. DUST COVERS, INCL. ELECTRONIC MANUAL ON CD, C-PLUG OPTIONAL |
| Transmission rate |
| Transfer rate |
10 Mbit/s, 100 Mbit/s |
| Interfaces |
| Number of electrical/optical connections |
|
| ● for network components or terminal equipment / maximum |
8 |
| Number of electrical connections |
|
| ● for network components or terminal equipment |
8 |
| ● for signaling contact |
1 |
| ● for power supply |
1 |
| ● for redundant voltage supply |
1 |
| Design of the electrical connection |
|
| ● for network components or terminal equipment |
M12 port, 4-pin, D-coded |
| ● for signaling contact |
5-pin M12 socket (b-coded) |
| ● for power supply |
4-pin M12 interface (A-coded) |
| design of the removable storage / C-PLUG |
Yes |
| Signal-Inputs/outputs |
| Operating voltage / of the signaling contacts |
|
| ● for DC / Rated value |
24 V |
| Operating current / of the signaling contacts |
|
| ● for DC / maximum |
0.1 A |
| Supply voltage, current consumption, power loss |
| Type of voltage / of the supply voltage |
DC |
| Supply voltage |
|
| ● external |
24 V |
| ● external |
18 ... 32 V |
| Product component / fusing at power supply input |
Yes |
| Fuse protection type / at input for supply voltage |
0,6 A / 60 V |
| Consumed current / maximum |
0.185 A |
| Active power loss |
|
| ● for DC / at 24 V |
4.4 W |
| Permitted ambient conditions |
| Ambient temperature |
|
| ● during operation |
-40 ... 70 °C |
| ● during storage |
-40 ... 70 °C |
| ● during transport |
-40 ... 70 °C |
| Relative humidity |
|
| ● at 25 °C / without condensation / during operation / maximum |
95 % |
| Protection class IP |
IP65/67 |
| Design, dimensions and weight |
| Design |
compact |
| Width |
90 mm |
| Height |
125 mm |
| Depth |
124 mm |
| Net weight |
1 kg |
| Mounting type |
|
| ● 35 mm DIN rail mounting |
Yes |
| ● wall mounting |
Yes |
| ● S7-300 rail mounting |
Yes |
| ● S7-1500 rail mounting |
No |
| Product properties, functions, components / general |
| Cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s |
50 |
| Cascading in cases of star topology |
Any (depending only on signal propagation time) |
| Product functions / management, configuration |
| Product function |
|
| ● CLI |
Yes |
| ● web-based management |
Yes |
| ● MIB support |
Yes |
| ● TRAPs via email |
Yes |
| ● Configuration with STEP 7 |
Yes |
| ● Port mirroring |
Yes |
| ● multiport mirroring |
No |
| ● with IRT / PROFINET IO switch |
No |
| ● PROFINET IO diagnosis |
Yes |
| ● switch-managed |
Yes |
| Protocol / is supported |
|
| ● Telnet |
Yes |
| ● HTTP |
Yes |
| ● HTTPS |
Yes |
| ● TFTP |
Yes |
| ● FTP |
Yes |
| ● BOOTP |
No |
| ● DCP |
Yes |
| ● LLDP |
Yes |
| Identification & maintenance function |
|
| ● I&M0 - device-specific information |
Yes |
| ● I&M1 – higher-level designation/location designation |
Yes |
| Protocol / is supported |
|
| ● SNMP v1 |
Yes |
| ● SNMP v2 |
Yes |
| ● SNMP v3 |
Yes |
| Product functions / Diagnosis |
| Product function |
|
| ● Port diagnostics |
Yes |
| ● Statistics Packet Size |
Yes |
| ● Statistics packet type |
Yes |
| ● Error statistics |
Yes |
| Product functions / DHCP |
| Product function |
|
| ● DHCP client |
Yes |
| Product functions / Redundancy |
| Product function |
|
| ● Ring redundancy |
Yes |
| ● High Speed Redundancy Protocol (HRP) |
Yes |
| ● high speed redundancy protocol (HRP) with redundancy manager |
Yes |
| ● high speed redundancy protocol (HRP) with standby redundancy |
No |
| ● Media Redundancy Protocol (MRP) |
Yes |
| ● media redundancy protocol (MRP) with redundancy manager |
Yes |
| ● Passive listening |
Yes |
| Product functions / Security |
| Protocol / is supported |
|
| ● SSH |
Yes |
| Product functions / Time |
| Product function |
|
| ● SICLOCK support |
Yes |
| Protocol / is supported |
|
| ● NTP |
No |
| ● SNTP |
Yes |
| Standards, specifications, approvals |
| Standard |
|
| ● for FM |
FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4 |
| ● for hazardous zone |
EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
| ● for safety / from CSA and UL |
UL 60950-1, CSA C22.2 No. 60950-1 |
| ● for hazardous zone / from CSA and UL |
ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4 |
| ● for emitted interference |
EN 61000-6-4 (Class A) |
| ● for interference immunity |
EN 61000-6-2 |
| Certificate of suitability |
EN 61000-6-2, EN 61000-6-4 |
| ● CE marking |
Yes |
| ● C-Tick |
Yes |
| ● KC approval |
Yes |
| ● Railway application in accordance with EN 50155 |
No |
| ● Railway application in accordance with EN 50124-1 |
No |
| Marine classification association |
|
| ● American Bureau of Shipping Europe Ltd. (ABS) |
No |
| ● Bureau Veritas (BV) |
No |
| ● Det Norske Veritas (DNV) |
No |
| ● Germanische Lloyd (GL) |
No |
| ● Lloyds Register of Shipping (LRS) |
No |
| ● Nippon Kaiji Kyokai (NK) |
No |
| ● Polski Rejestr Statkow (PRS) |
No |
| MTBF / at 40 °C |
83 y |
| Accessories |
| Product expansion / optional / C-PLUG |
Yes |
| Further Information / Internet Links |
| Internet-Link |
|
| ● to website: Selector SIMATIC NET SELECTION TOOL |
http://www.siemens.com/snst |
| ● to website: Industrial communication |
http://www.siemens.com/simatic-net |
| ● to website: Information and Download Center |
http://www.siemens.com/automation/net/catalog |
| ● to website: Image database |
http://automation.siemens.com/bilddb |
| ● to website: CAx Download Manager |
http://www.siemens.com/cax |
| ● to website: Industry Online Support |
http://support.automation.siemens.com |
