| Product type designation |

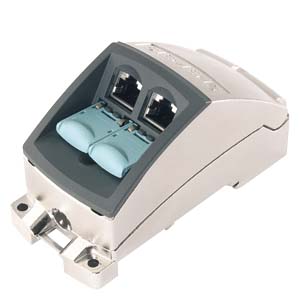

IE FC RJ45 modular outlet (without insert) |
| Product description |
|
|
INDUSTRIAL ETHERNET FASTCONNECT RJ45 MODULAR OUTLET BASE MODULE, CAT6, WITHOUT INSERT, PACK = 1 PC |
| Electrical data |
| Transfer rate |
10 Mbit/s, 100 Mbit/s, 1000 Mbit/s |
| Interfaces |
| Number of electrical connections |
|
| ● for Industrial Ethernet FC TP cables |
1 |
| Design of the electrical connection |
|
| ● for Industrial Ethernet FC TP cables |
integrated insulation displacement contacts |
| ● FastConnect |
Yes |
| Mechanical data |
| Material / of the enclosure |
metal |
| Design, dimensions and weight |
| Width |
50 mm |
| Height |
115.25 mm |
| Depth |
58.95 mm |
| Net weight |
450 g |
| Mounting type |
|
| ● 35 mm DIN rail mounting |
Yes |
| ● wall mounting |
Yes |
| Permitted ambient conditions |
| Ambient temperature / during operation |
-20 ... 70 °C |
| Ambient temperature / during storage |
-40 ... 80 °C |
| Ambient temperature / during transport |
-40 ... 80 °C |
| Relative humidity / at 25 °C / without condensation / during operation / maximum |
95 % |
| Protection class IP |
IP40 |
| Standards, specifications, approvals |
| Certificate of suitability |
|
| ● RoHS conformity |
Yes |
| ● UL approval |
Yes |
| Standard for structured cabling |
Cat 6 |
| Further Information / Internet Links |
| Internet-Link |
|
| ● to website: Selector SIMATIC NET SELECTION TOOL |
http://www.siemens.com/snst |
| ● to website: Industrial communication |
http://www.siemens.com/simatic-net |
| ● to website: Information and Download Center |
http://www.siemens.com/automation/net/catalog |
| ● to website: Image database |
http://automation.siemens.com/bilddb |
| ● to website: CAx Download Manager |
http://www.siemens.com/cax |
| ● to website: Industry Online Support |
http://support.automation.siemens.com |
