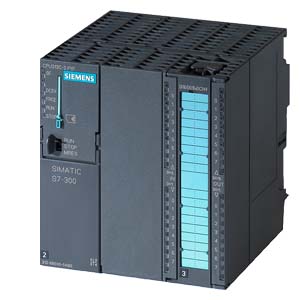

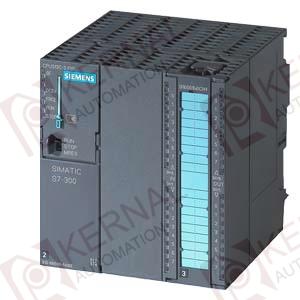

SIMATIC S7-300, CPU 313C-2 PTP COMPACT CPU WITH MPI, 16 DI/16 DO, 3 FAST COUNTERS (30 KHZ), INTEGRATED INTERFACE RS485, INTEGRATED 24V DC POWER SUPPLY, 64 KBYTE WORKING MEMORY, FRONT CONNECTOR (1 X 40PIN) AND MICRO MEMORY CARD REQUIRED |
| General information |
| Hardware product version |
01 |
| Firmware version |
V2.6 |
| Engineering with |
| ● Programming package |
STEP 7 V5.3 SP2 or higher with HW update |
| Supply voltage |
| 24 V DC |
Yes |
| permissible range, lower limit (DC) |
20.4 V |
| permissible range, upper limit (DC) |
28.8 V |
| external protection for power supply lines (recommendation) |
Miniature circuit breaker, type C; min. 2 A; miniature circuit breaker type B, min. 4 A |
| Load voltage L |
| ● Rated value (DC) |
24 V |
| ● permissible range, lower limit (DC) |
20.4 V |
| ● permissible range, upper limit (DC) |
28.8 V |
| Digital inputs |
| Load voltage L |
| — Rated value (DC) |
24 V |
| — Reverse polarity protection |
Yes |
| Digital outputs |
| Load voltage L |
| — Rated value (DC) |
24 V |
| — Reverse polarity protection |
No |
| Input current |
| Current consumption (rated value) |
700 mA |
| Current consumption (in no-load operation), typ. |
100 mA |
| Inrush current, typ. |
11 A |
| I²t |
0.7 A²·s |
| from supply voltage L , max. |
700 mA |
| Digital inputs |
| ● from load voltage L (without load), max. |
70 mA |
| Digital outputs |
| ● from load voltage L , max. |
100 mA |
| Power loss |
| Power loss, typ. |
10 W |
| Memory |
| Type of memory |
other |
| Work memory |
| ● integrated |
64 kbyte |
| ● expandable |
No |
| Load memory |
| ● Plug-in (MMC) |
Yes |
| ● Plug-in (MMC), max. |
8 Mbyte |
| ● Data management on MMC (after last programming), min. |
10 y |
| Backup |
| ● present |
Yes; Guaranteed by MMC (maintenance-free) |
| ● without battery |
Yes; Program and data |
| CPU processing times |
| for bit operations, typ. |
0.1 µs |
| for bit operations, max. |
0.2 µs |
| for word operations, typ. |
0.2 µs |
| for fixed point arithmetic, typ. |
2 µs |
| for floating point arithmetic, typ. |
3 µs |
| CPU-blocks |
| Number of blocks (total) |
1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. |
| DB |
| ● Number, max. |
511; Number range: 1 to 511 |
| ● Size, max. |
16 kbyte |
| FB |
| ● Number, max. |
1 024; Number range: 0 to 2047 |
| ● Size, max. |
16 kbyte |
| FC |
| ● Number, max. |
1 024; Number range: 0 to 2047 |
| ● Size, max. |
16 kbyte |
| OB |
| ● Size, max. |
16 kbyte |
| ● Number of free cycle OBs |
1; OB 1 |
| ● Number of time alarm OBs |
1; OB 10 |
| ● Number of delay alarm OBs |
1; OB 20 |
| ● Number of time interrupt OBs |
1; OB 35 |
| ● Number of process alarm OBs |
1; OB 40 |
| ● Number of startup OBs |
1; OB 100 |
| ● Number of asynchronous error OBs |
4; OB 80, 82, 85, 87 |
| ● Number of synchronous error OBs |
2; OB 121, 122 |
| Nesting depth |
| ● per priority class |
8 |
| ● additional within an error OB |
4 |
| Counters, timers and their retentivity |
| S7 counter |
| ● Number |
256 |
| of which retentive without battery |
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| — preset |
8 |
| Retentivity |
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| — preset |
8 |
| Counting range |
| — lower limit |
0 |
| — upper limit |
999 |
| IEC counter |
| ● present |
Yes |
| ● Type |
SFB |
| ● Number |
Unlimited (limited only by RAM capacity) |
| S7 times |
| ● Number |
256 |
| of which retentive without battery |
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| Retentivity |
| — adjustable |
Yes |
| — lower limit |
0 |
| — upper limit |
255 |
| — preset |
No retentivity |
| Time range |
| — lower limit |
10 ms |
| — upper limit |
9 990 s |
| IEC timer |
| ● present |
Yes |
| ● Type |
SFB |
| ● Number |
Unlimited (limited only by RAM capacity) |
| Data areas and their retentivity |
| retentive data area, total |
all |
| Flag |
| ● Number, max. |
256 byte |
| ● Retentivity available |
Yes; MB 0 to MB 255 |
| ● Retentivity preset |
MB 0 to MB 15 |
| ● Number of clock memories |
8; 1 memory byte |
| Data blocks |
| ● Number, max. |
511; Number range: 1 to 511 |
| ● Size, max. |
16 kbyte |
| ● Retentivity adjustable |
Yes; via non-retain property on DB |
| ● Retentivity preset |
Yes |
| Local data |
| ● per priority class, max. |
510 byte |
| Address area |
| I/O address area |
| ● Inputs |
1 kbyte |
| ● Outputs |
1 kbyte |
| of which distributed |
| — Inputs |
none |
| — Outputs |
none |
| Process image |
| ● Inputs |
128 byte |
| ● Outputs |
128 byte |
| Default addresses of the integrated channels |
| — Digital inputs |
124.0 to 125.7 |
| — Digital outputs |
124.0 to 125.7 |
| Digital channels |
| ● Inputs |
1 008 |
| ● Outputs |
1 008 |
| ● Inputs, of which central |
1 008 |
| ● Outputs, of which central |
1 008 |
| Analog channels |
| ● Inputs |
248 |
| ● Outputs |
248 |
| ● Inputs, of which central |
248 |
| ● Outputs, of which central |
248 |
| Hardware configuration |
| Expansion devices, max. |
3 |
| Number of DP masters |
| ● integrated |
No |
| ● via CP |
4 |
| Number of operable FMs and CPs (recommended) |
| ● FM |
8 |
| ● CP, point-to-point |
8 |
| ● CP, LAN |
6 |
| Rack |
| ● Racks, max. |
4 |
| ● Modules per rack, max. |
8; In rack 3 max. 7 |
| Time of day |
| Clock |
| ● Hardware clock (real-time clock) |
Yes |
| ● battery-backed and synchronizable |
Yes |
| ● Deviation per day, max. |
10 s |
| ● Backup time |
6 wk; At 40 °C ambient temperature |
| Operating hours counter |
| ● Number |
1 |
| ● Number/Number range |
0 |
| ● Range of values |
0 to 2^31 hours (when using SFC 101) |
| ● Granularity |
1 hour |
| ● retentive |
Yes; Must be restarted at each restart |
| Clock synchronization |
| ● supported |
Yes |
| ● to MPI, master |
Yes |
| ● to MPI, slave |
Yes |
| ● in AS, master |
Yes |
| Digital inputs |
| Number of digital inputs |
16 |
| ● of which inputs usable for technological functions |
12 |
| integrated channels (DI) |
16 |
| Input characteristic curve in accordance with IEC 61131, type 1 |
Yes |
| Number of simultaneously controllable inputs |
| horizontal installation |
| — up to 40 °C, max. |
16 |
| — up to 60 °C, max. |
8 |
| vertical installation |
| — up to 40 °C, max. |
8 |
| Input voltage |
| ● Rated value, DC |
24 V |
| ● for signal "0" |
-3 to 5 V |
| ● for signal "1" |
15 to 30 V |
| Input current |
| ● for signal "1", typ. |
9 mA |
| Input delay (for rated value of input voltage) |
| for standard inputs |
| — parameterizable |
Yes; 0.1 / 0.3 / 3 / 15 ms |
| — Rated value |
3 ms |
| for counter/technological functions |
| — at "0" to "1", max. |
16 µs |
| Cable length |
| ● Cable length, shielded, max. |
1 000 m; 100 m for technological functions |
| ● Cable length unshielded, max. |
600 m; For technological functions: No |
| Technological functions |
| — shielded, max. |
100 m |
| — unshielded, max. |
not allowed |
| Standard DI |
| — shielded, max. |
1 000 m |
| — unshielded, max. |
600 m |
| Digital outputs |
| Number of digital outputs |
16 |
| ● of which high-speed outputs |
4 |
| integrated channels (DO) |
16 |
| Short-circuit protection |
Yes; Clocked electronically |
| ● Response threshold, typ. |
1 A |
| Limitation of inductive shutdown voltage to |
L (-48 V) |
| Controlling a digital input |
Yes |
| Switching capacity of the outputs |
| ● Lamp load, max. |
5 W |
| Load resistance range |
| ● lower limit |
48 Ω |
| ● upper limit |
4 kΩ |
| Output voltage |
| ● for signal "1", min. |
L (-0.8 V) |
| Output current |
| ● for signal "1" rated value |
500 mA |
| ● for signal "1" permissible range, min. |
5 mA |
| ● for signal "1" permissible range, max. |
0.6 A |
| ● for signal "1" minimum load current |
5 mA |
| ● for signal "0" residual current, max. |
0.5 mA |
| Parallel switching of 2 outputs |
| ● for uprating |
No |
| ● for redundant control of a load |
Yes |
| Switching frequency |
| ● with resistive load, max. |
100 Hz |
| ● with inductive load, max. |
0.5 Hz |
| ● on lamp load, max. |
100 Hz |
| ● of the pulse outputs, with resistive load, max. |
2.5 kHz |
| Total current of the outputs (per group) |
| horizontal installation |
| — up to 40 °C, max. |
3 A |
| — up to 60 °C, max. |
2 A |
| vertical installation |
| — up to 40 °C, max. |
2 A |
| Cable length |
| ● Cable length, shielded, max. |
1 000 m |
| ● Cable length unshielded, max. |
600 m |
| Analog inputs |
| integrated channels (AI) |
none |
| Analog outputs |
| integrated channels (AO) |
none |
| Encoder |
| Connectable encoders |
| ● 2-wire sensor |
Yes |
| — permissible quiescent current (2-wire sensor), max. |
1.5 mA |
| Interfaces |
| Number of USB interfaces |
0 |
| Number of parallel interfaces |
0 |
| Number of 20 mA interfaces (TTY) |
0 |
| Number of RS 232 interfaces |
0 |
| Number of RS 422 interfaces |
1; RS 422/485 combined |
| Number of other interfaces |
0 |
| MPI |
| ● Cable length, max. |
50 m; without repeater |
| Point-to-point |
| ● Cable length, max. |
1 200 m |
| Integrated protocol driver |
| — 3964 (R) |
Yes |
| — ASCII |
Yes |
| — RK512 |
No |
| Transmission rate, RS 422/485 |
| — with 3964 (R) protocol, max. |
38.4 kbit/s half duplex; 19.2 kbit/s full duplex |
| — with ASCII protocol, max. |
38.4 kbit/s half duplex; 19.2 kbit/s full duplex |
| 1. Interface |
| Interface type |
Integrated RS 485 interface |
| Physics |
RS 485 |
| isolated |
No |
| Power supply to interface (15 to 30 V DC), max. |
200 mA |
| Functionality |
| ● MPI |
Yes |
| ● DP master |
No |
| ● DP slave |
No |
| ● Point-to-point connection |
No |
| MPI |
| ● Number of connections |
8 |
| ● Transmission rate, max. |
187.5 kbit/s |
| Services |
| — PG/OP communication |
Yes |
| — Routing |
No |
| — Global data communication |
Yes |
| — S7 basic communication |
Yes |
| — S7 communication |
Yes |
| — S7 communication, as client |
No |
| — S7 communication, as server |
Yes |
| 2. Interface |
| Interface type |
Integrated RS 422/ 485 interface |
| Physics |
RS 422/RS 485 (X.27) |
| isolated |
Yes |
| Power supply to interface (15 to 30 V DC), max. |
No |
| Number of connection resources |
none |
| Functionality |
| ● MPI |
No |
| ● DP master |
No |
| ● DP slave |
No |
| ● PROFINET IO Controller |
No |
| ● PROFINET CBA |
No |
| ● Point-to-point connection |
Yes |
| Point-to-point connection |
| ● Transmission rate, max. |
38.4 kbit/s half duplex; 19.2 kbit/s full duplex |
| ● Cable length, max. |
1 200 m |
| ● Interface from the user program controllable |
Yes |
| ● Interface can trigger alarm/interrupt in the user program |
Yes; Message on break - identification |
| ● Protocol driver |
3964 (R); ASCII |
| Communication functions |
| PG/OP communication |
Yes |
| Global data communication |
| ● supported |
Yes |
| ● Number of GD loops, max. |
4 |
| ● Number of GD packets, max. |
4 |
| ● Number of GD packets, transmitter, max. |
4 |
| ● Number of GD packets, receiver, max. |
4 |
| ● Size of GD packets, max. |
22 byte |
| ● Size of GD packet (of which consistent), max. |
22 byte |
| S7 basic communication |
| ● supported |
Yes; Server |
| ● User data per job, max. |
76 byte |
| ● User data per job (of which consistent), max. |
76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server) |
| S7 communication |
| ● supported |
Yes |
| ● as server |
Yes |
| ● as client |
Yes; Via CP and loadable FB |
| ● User data per job, max. |
180 byte; With PUT/GET |
| ● User data per job (of which consistent), max. |
64 byte |
| S5 compatible communication |
| ● supported |
Yes; via CP and loadable FC |
| Number of connections |
| ● overall |
8 |
| ● usable for PG communication |
7 |
| — reserved for PG communication |
1 |
| — adjustable for PG communication, min. |
1 |
| — adjustable for PG communication, max. |
7 |
| ● usable for OP communication |
7 |
| — reserved for OP communication |
1 |
| — adjustable for OP communication, min. |
1 |
| — adjustable for OP communication, max. |
7 |
| ● usable for S7 basic communication |
4 |
| — reserved for S7 basic communication |
0 |
| — adjustable for S7 basic communication, min. |
0 |
| — adjustable for S7 basic communication, max. |
4 |
| ● usable for routing |
No |
| S7 message functions |
| Number of login stations for message functions, max. |
8; Depending on the configured connections for PG/OP and S7 basic communication |
| Process diagnostic messages |
Yes |
| simultaneously active Alarm-S blocks, max. |
20 |
| Test commissioning functions |
| Status block |
Yes |
| Single step |
Yes |
| Number of breakpoints |
2 |
| Status/control |
| ● Status/control variable |
Yes |
| ● Variables |
Inputs, outputs, memory bits, DB, times, counters |
| ● Number of variables, max. |
30 |
| ● of which status variables, max. |
30 |
| ● of which control variables, max. |
14 |
| Forcing |
| ● Forcing |
Yes |
| ● Forcing, variables |
Inputs, outputs |
| ● Number of variables, max. |
10 |
| Diagnostic buffer |
| ● present |
Yes |
| ● Number of entries, max. |
100 |
| Interrupts/diagnostics/status information |
| Diagnostics indication LED |
| ● Status indicator digital output (green) |
Yes |
| ● Status indicator digital input (green) |
Yes |
| Integrated Functions |
| Number of counters |
3; 3 channels (see "Technological Functions" manual) |
| Counting frequency (counter) max. |
30 kHz |
| Frequency measurement |
Yes |
| Number of frequency meters |
3; 3 channels up to max. 30 kHz (see "Technological Functions" manual) |
| controlled positioning |
No |
| integrated function blocks (closed-loop control) |
PID controller (see "Technological Functions" manual) |
| PID controller |
Yes |
| Number of pulse outputs |
3; 3 channels pulse width modulation up to max. 2.5 kHz (see "Technological Functions" manual) |
| Limit frequency (pulse) |
2.5 kHz |
| Galvanic isolation |
| Galvanic isolation digital inputs |
| ● Galvanic isolation digital inputs |
Yes |
| ● between the channels |
No |
| ● between the channels and the backplane bus |
Yes |
| Galvanic isolation digital outputs |
| ● Galvanic isolation digital outputs |
Yes |
| ● between the channels |
Yes |
| ● between the channels, in groups of |
8 |
| ● between the channels and the backplane bus |
Yes |
| Permissible potential difference |
| between different circuits |
75 VDC / 60 VAC |
| Isolation |
| Isolation tested with |
600 V DC |
| Configuration |
| Configuration software |
| ● STEP 7 |
Yes; V5.2 SP1 with HW update |
| Programming |
| ● Command set |
see instruction list |
| ● Nesting levels |
8 |
| ● System functions (SFC) |
see instruction list |
| ● System function blocks (SFB) |
see instruction list |
| Programming language |
| — LAD |
Yes |
| — FBD |
Yes |
| — STL |
Yes |
| — SCL |
Yes |
| — GRAPH |
Yes |
| — HiGraph® |
Yes |
| Know-how protection |
| ● User program protection/password protection |
Yes |
| Dimensions |
| Width |
120 mm |
| Height |
125 mm |
| Depth |
130 mm |
| Weights |
| Weight, approx. |
566 g |
| last modified: |
31.07.2014 |
