KERNAL AUTOMATION CO. LIMITED

Model

6ED1052-1MD00-0BA6

Availability:In Stock

Product Details

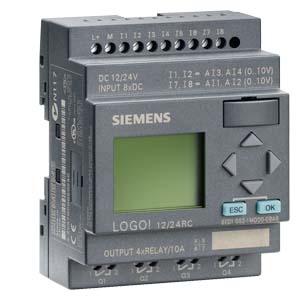

SIEMENS LOGO! Controller 6ED10521MD000BA6 LOGO! 12/24RC,LOGIC MOD.,DISPL.,PU/I/O: 12/24V DC/RELAY,,8 DI (4AI)/4 DO; MEM 200 BLOCKS,EXPANDABLE WITH EXTRA MODULESLOGO! 12/24RC,LOGIKMODUL,DISPL.,SV/E/A: 12/24V DC/RELAIS,,8DE (4AE)/4DA, SP. 200 BLOECKE,,MODUL

Technical Specifications

Artikelnummer

6ED1052-1MD00-0BA6

		LOGO! 12/24RC,LOGIC MOD.,DISPL. PU/I/O: 12/24V DC/RELAY, 8 DI (4AI)/4 DO; MEM 200 BLOCKS EXPANDABLE WITH EXTRA MODULES
Installation type/mounting
Mounting		on 35 mm DIN rail, 4 spacing units wide
Supply voltage
12 V DC		Yes
24 V DC		Yes
permissible range, lower limit (DC)		10.8 V
permissible range, upper limit (DC)		28.8 V
Time of day
Time switching clocks
● Number		8
● Power reserve		80 h
Digital inputs
Number of digital inputs		8; Of which 4 can be used in analog mode (0 to 10 V)
Digital outputs
Number of digital outputs		4; Relays
short-circuit protection		No; external fusing necessary
Relay outputs
Switching capacity of contacts
— with inductive load, max.		3 A
— with resistive load, max.		10 A
EMC
Emission of radio interference acc. to EN 55 011
● Limit class B, for use in residential areas		Yes
Degree and class of protection
Degree of protection to EN 60529
● IP20		Yes
Standards, approvals, certificates
CSA approval		Yes
UL approval		Yes
FM approval		Yes
Developed in accordance with IEC 61131		Yes
according to VDE 0631		Yes
Marine approval
● Marine approval		Yes
Ambient conditions
Operating temperature
● Min.		0 °C
● max.		55 °C
Dimensions
Width		72 mm
Height		90 mm
Depth		55 mm
last modified:		25.09.2014
