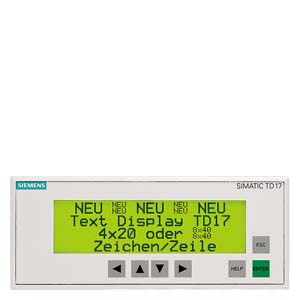

TEXT DISPLAY TD17 LC DISPLAY, BACK-LIT LED, 4X20/8X40 LINES X CHARACTERS F0R SIMATIC S5 ,505 ,S7 ,M7 NATIVE DRIVERS, PROFIBUS-DP12 |
| General information |
| Customer-specific configuration |
No |
| Display |
| graphics-enabled |
No |
| Display type |
Black/white |
| Type |
Lines |
| Line display |
LC display |
| ● Number of lines |
8 |
| ● Number of characters per line |
40 |
| Number of grayscales |
0 |
| Color type |
Black/white |
| Backlighting |
| ● MTBF backlighting (at 25 °C) |
200 000 h |
| Control elements |
| Operating options |
Keys |
| Function keys, programmable |
none |
| Connection for mouse/keyboard/barcode reader |
- / - / - |
| Keyboard |
| ● Membrane keyboard |
Yes |
| ● freely inscribable membrane keys |
No |
| ● Numeric/alphabetical input |
No / No |
| — hexadecimal keyboard |
No |
| ● Multi-key operation |
No |
| Touch operation |
| ● Design as touch screen |
No |
| Supply voltage |
| Type of supply voltage |
24 V DC |
| UPS connectable (serial) |
No |
| Input current |
| Rated current |
0.34 A |
| Power |
| Power |
8.4 W |
| Processor |
| Processor type |
X86 |
| Drives |
| Diskette drive |
No |
| CD-ROM |
No |
| Hard disk |
No |
| Memory |
| Usable memory for user data |
128 kbyte |
| Battery |
| Backup battery |
| ● Backup battery |
optional 3.6 V |
| — minimum backup duration |
4 y |
| Time of day |
| Clock |
| ● Type |
Hardware clock, battery backup |
| ● Hardware clock (real-time clock) |
Yes |
| ● Software clock |
No |
| ● Battery-backed |
Yes |
| ● Synchronizable |
No |
| Interfaces |
| Interfaces |
1 x TTY, 1 x RS232, 1 x RS422, 1 x RS485 (max. 12 Mbit/s) |
| Number of RS 485 interfaces |
1 |
| ● Transmission rate, max. |
12 Mbit/s |
| Number of parallel interfaces |
0 |
| With software interfaces |
No |
| Protocols |
| PROFIBUS |
Yes |
| MPI |
Yes |
| Further protocols |
| ● AS-i |
No |
| ● CAN |
No |
| ● INTERBUS |
No |
| ● EIB |
No |
| ● MODBUS |
No |
| ● Data highway |
No |
| ● DeviceNet |
No |
| ● Local Operating Network |
No |
| ● SUCOnet |
No |
| ● other bus systems |
No |
| Degree and class of protection |
| IP (at the front) |
IP65 |
| IP (rear) |
IP20 |
| Standards, approvals, certificates |
| Certifications |
CE, GL, ABS, DNV, LRS, PRS, FM Class I Div. 2, UL, CSA, cULus |
| cULus |
Yes |
| RCM (formerly C-TICK) |
No |
| Ambient conditions |
| Mounting position |
vertical |
| maximum permissible angle of inclination without external ventilation |
/- 90 ° |
| Storage/transport temperature |
| ● Ambient temperature during storage, minimum |
-25 °C |
| ● Ambient temperature during storage, maximal |
70 °C |
| ● Transport, storage |
-25 °C to 70 °C |
| Relative humidity |
| ● Operation, max. |
95 % |
| Operating systems |
| Operating system |
Rmos |
| Configuration |
| Message indicator |
Yes |
| With alarm logging system (incl. buffer and acknowledgment) |
No |
| Process value display (output) |
No |
| Process value default (input) possible |
No |
| Recipe administration |
No |
| Configuration software |
| ● Configuration tool |
ProTool / Lite Version 2.51 or higher (to be ordered separately) |
| ● 1st configuration kit |
ProTool / Lite |
| — Version |
Version 2.51 |
| — Configuration tool |
ProTool |
| — Type |
Lite |
| I/O / Options |
| Additional software components loadable |
No |
| Dimensions |
| Width of the housing front |
240 mm |
| Height of housing front |
98 mm |
| Device depth |
47 mm |
| Weights |
| Weight (without packaging) |
0.9 kg |
| other |
| free hotline |
Yes |
| Warranty period |
1 y |
| last modified: |
14.10.2014 |
